| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | RTCZ 55-700-A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 0-140pleats/min | Machine Weight: | 700kg |
|---|---|---|---|
| Machine Size: | 600*1720*1500mm(L×W×H) | Type: | Paper Folding Machine |
| Warranty: | 1 Year | Product Name: | Filter Pleating Machine Paper Machine Air Filter Making Machine |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 140Pleats/Min Knife Pleating Machine,380V Knife Pleating Machine |
||

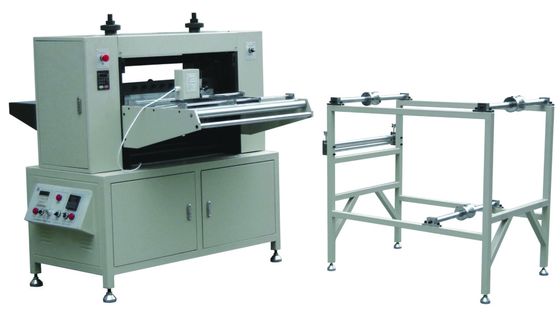

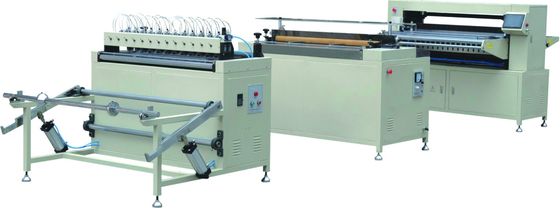

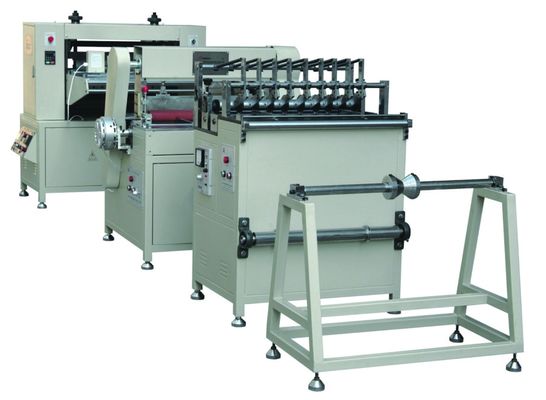

High Speed Knife Pleating Production Line For Wire Mesh Synthetic Fiber
1, General description
The High Speed Knife Pleating Production Line is applicable to any material or multilevel material folded filter paper
1. The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. it is simple operated but smooth and effective. After slitting the paper the conveyor for feeding the filter paper runs in synchronism with th marking machine by equipping the monitoring system..
2,The marking machine can be marked in different pleat sizes, the marking distance can be arbitrarily set by the computer, and the distance will be accurately marked with the servo motor load.
3,The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
4,After marking, the filter paper will be pleated and pre-heated.
The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
2, Machine Specifications
| Max width | 700mm |
| Adjustable pleating height | 4-100mm |
| Pleating speed | 0-230pairs/min |
| Power supply | 380v/50hz |
| Motor power | 4kw |
| Preheating power | 8KW |
| Heating temp | normal-250℃ |
| Working air pressure | 0.6Mpa |
| M/C weight | 700kg |
| M/C size | 2300×1500×1800mm(L×W×H) |
3, Features
1. The folding machine adopts the alternate method of upper and lower knives to complete the folding work. The knife distance is automatically adjusted by the computer to meet the requirements of various folding heights. The size is accurate and flat.
2. The filter paper completes automatic dotting and counting, folding processing and preheating and shaping on the origami machine.
3. The machine can also fold all irregular fold height changes.
4. The angle of the folding knife of this machine can be changed arbitrarily to ensure that no filter paper material is damaged during folding.
5. Equipment configuration: low voltage electrical appliances (Schneider), servo motor (Inovance), PLC (Inovance), motion controller (Inovance), touch screen (Inovance)

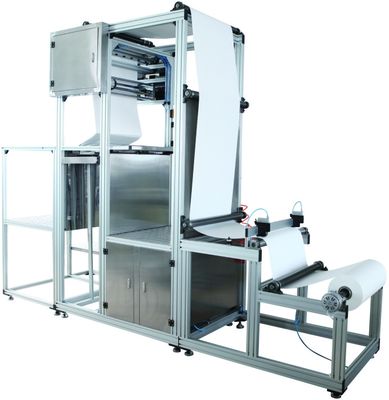

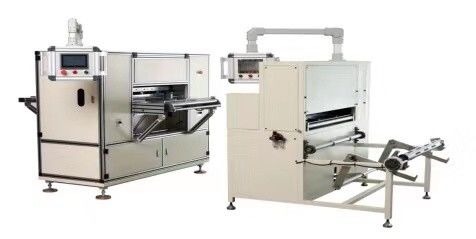

4, Related paper pleating machine
