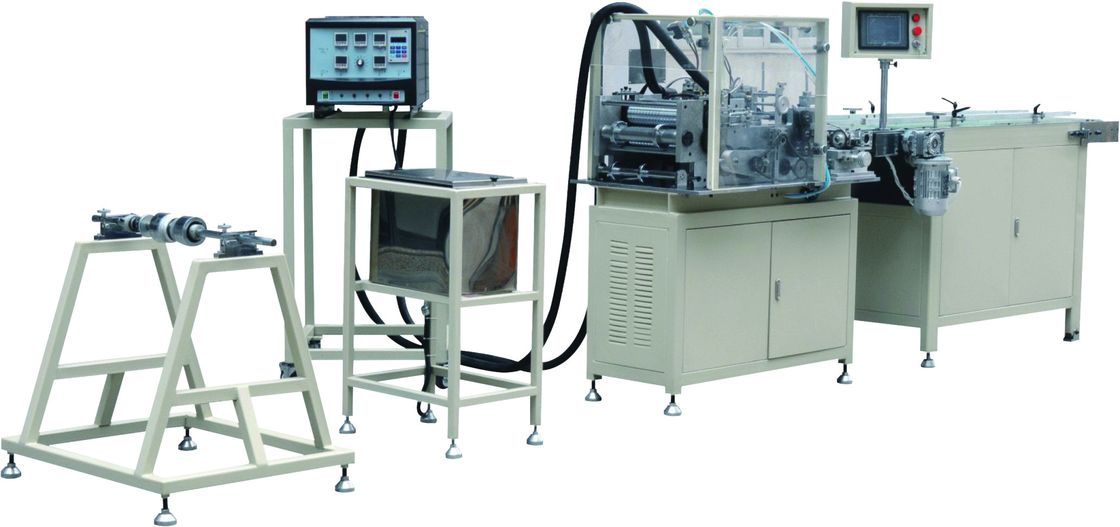

Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine

Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine

  • Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine
  • Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine
Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine
Product Details:
Place of Origin: China
Brand Name: RILANT
Certification: CE
Model Number: SZPG-350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Production Speed: 5~30m/min (adjustable) Machine Size: 7500×950×1750mm(L×W×H)
Machine Weight: 1100KG Application: Filter Paper Pleating
Warranty: One Year Service: Engineer Available For Overseas Service
Highlight:

hepa paper pleating machine

,

automatic pleating machine

Filter Pleating Machine Full-auto Panel Air Filter Paper Pleating Production Line

1, General Description

This pleating machine is technically used to manufacturing the car panel filter.

2, Machine Specifications

1, Widh:90~320mm Pleating height:16~70mm
2, Speed:5~30m/min (adjustable)
3, Temperature range:0~300℃
4, Heater power:8.5kw
5, Transmission power of pleater:0.75kw
6, Conveyer belt transmission power:0.25kw
7, Conveyer belt speed:0~5m/min.(adjustable)
8, Working air pressure:0.6Mpa
9, Power supply:380V/50Hz
10, M/C weight:1100kg
11, M/C size:7500×950×1750mm(L×W×H)

3, Machine Features



1, Both the work speed of the machine and transmission speed of the conveyer belt are controlled by computer, and can be easily adjusted.
2, Both impression and bubble formation are finished on the identical pairs of rollers with high precision.
3, The temperature can be predetermined in accordance with the requirement of the technological process. When the pleating machine runs and the heater will start to work automatically.
4, It adopts the water steam device, which is advantageous to prevent the paper from breaking when it is marked by rollers.
5, Melt quickly, the glue dispensing quantity can be easily controlled by the frequency converter.
6, Set pressure control unit in glue feeding circuit to ensure circuit safety.
7, Both the rubber hose and nozzle are independently temperature controlled, and easy to operate.



Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine 0





Related Product

Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine 1



Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine 2



Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine 3

4, Our Service

Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine 4

5, Package And Delivery

Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine 5

6, FAQ

Panel Paper Filter Manufacturing Machines , 0.6Mpa Industrial Pleating Machine 6
