RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZLQ-420-II |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Steel Strip Thickness: | 0.3~0.4mm | Diameter Range: | 120-420mm |
|---|---|---|---|
| Machine Size: | 1800×1100×1350mm(L×W×H) | Machine Weight: | 1500kg |
| Application: | Spiral Core Making For Heavy Duty Filter | Warranty: | One Year |
| Service: | Engineer Available For Overseas Service | ||
| Highlight: | car air filter production line,air filter manufacturing equipment |
||

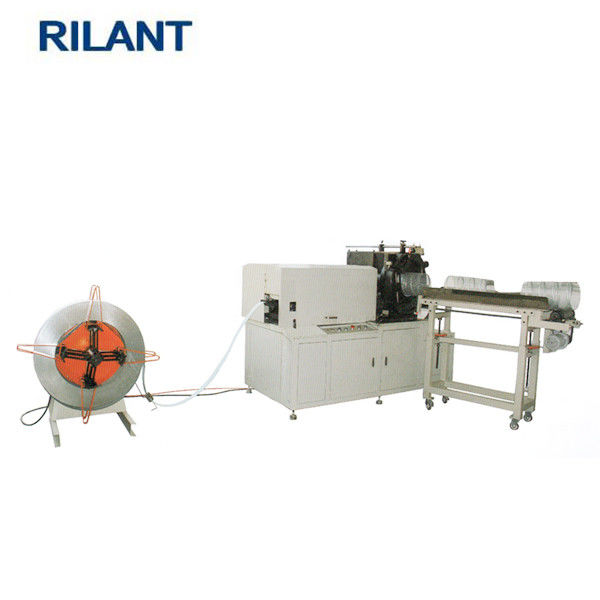

Heavy Duty Air Filters Full Auto Expanded Metal Spiral Core Making Machine
1, General Description

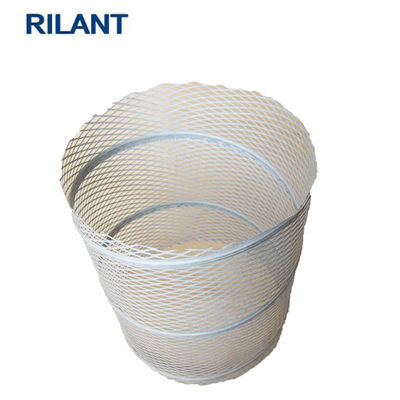

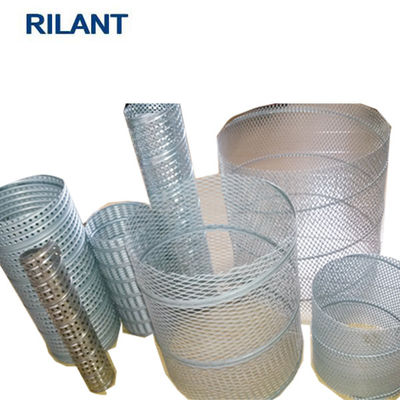

This full auto-expanded metal spiral core making machine is used to produce the inner and outer mesh for the heavy duty air filters directly from the metal strip. The metal strip will be expanded and flattened before spirally lock-seamed processing. It combines the traditional expanded metal making machine, flattening machine, spot-welding machine and the spiral tube making machine in one unit.
2, Machine Specifications
| Diameter range | 120-420mm |
| Metal strip material | anti-fingerprint/galvanized steel |
| Steel strip thickness | 0.3~0.4mm |
| Steel strip width | 67mm |
| Expanded metal width | 120mm |
| Motor power | 3KW |
| Power supply | 380V/50HZ |
| Machine weight | 1500kg |
| Machine size | 1800*1100*1350mm(L*W*H) |
This is full auto expanded metal spiral core making machine combines the expanded mesh making machine, flattening machine, cutting machine, spot-welding machine and spiral tube making machine into one unit.
It has high efficiency, stable and easy to operate.
