RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZGT-600N |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 0-35 M/min | Machine Size: | 5200×1190×1170mm(L×W×H) |
|---|---|---|---|
| Machine Weight: | 750KG | Application: | Filter Paper Pleating |
| Warranty: | One Year | Service: | Engineer Available For Overseas Service |
| Highlight: | hepa paper pleating machine,filter paper pleating machine |
||

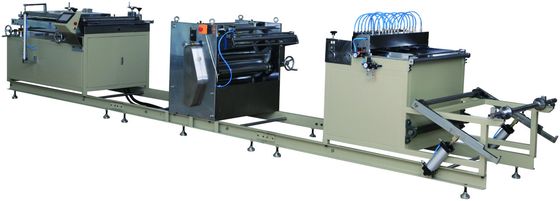

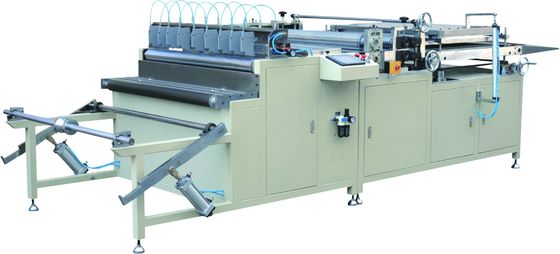

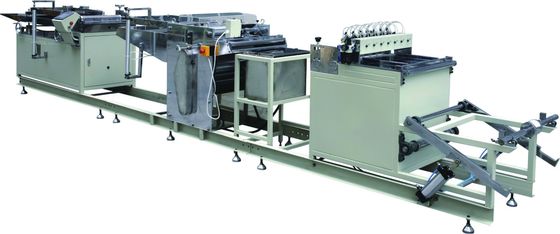

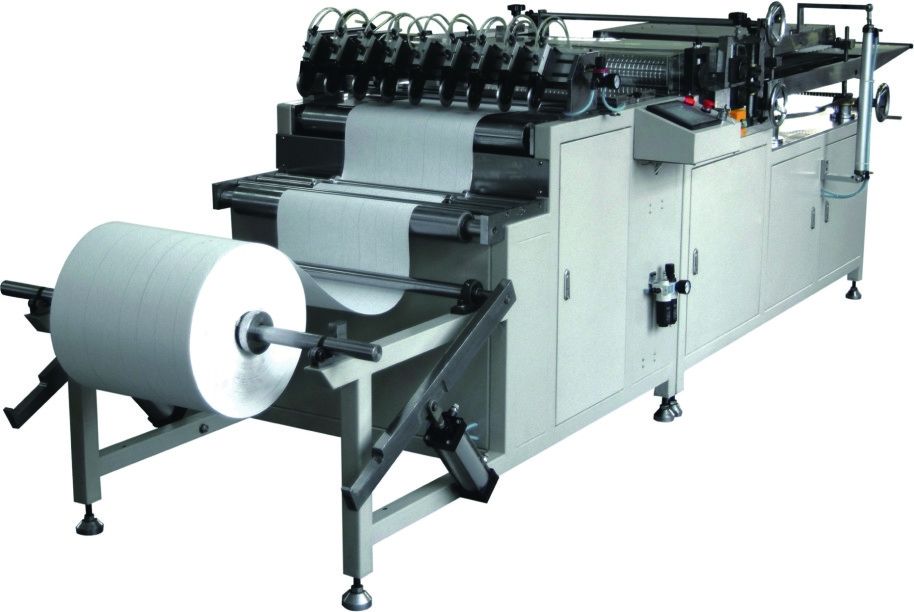

Filter Pleating Machine Full-auto Rotary Eco Filter Paper Pleating Production Line
1, General Description
This full auto rotary eco filter paper pleating machine is used for pleating and forming the HDAF filter element.
2, Machine Specifications
1, Product capability:0~35m/min
2, Max.width:600mm
3, Min.width:50mm
4, Max.pleat height:70mm
5, Min.pleat height:10mm
6, Customize the rollers sizes
7, Temp.control: normal temp.~300oC
8, Main power:12kw
9, Working air pressure:0.6MPa
10, Power supply:380V/50Hz
11, M/C weight:750kg
12, M/C dimension:5200×1190×1170mm(L×W×H)
1, The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.
2, This machine equips the pre-heating and water steam device, to prevent the paper breaking when roller marking.
3, This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
4, This high automatic machine has the process of the auto count marking, pleating,pre-heating and forming.
5, This machine is computer control and simple operation.
4, Our Service
5, Package And Delivery
6, FAQ
Contact Person: Mr. Flavio
Tel: +86 18994464917
Fax: 86-512-5013-0917
