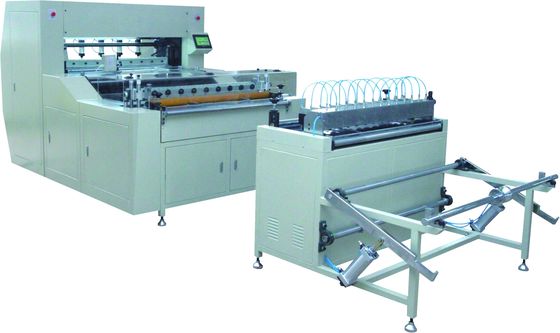

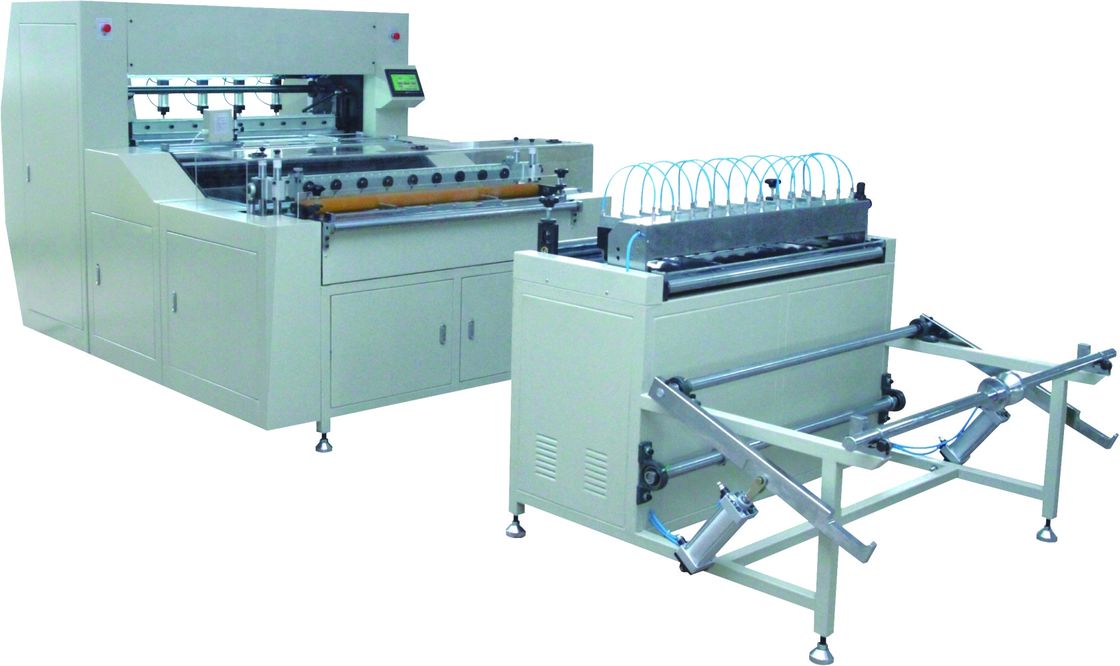

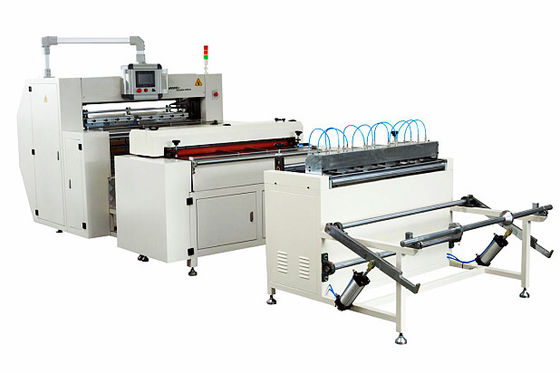

0 - 140 Pleats / Min Air Filter Pleating Machine With Pre - Slitting Conveyor

Filter Pleating Machine Full-auto CNC Knife Paper Pleating Production Line

1, General Description

This knife pleating production line is suitable for the automobile filter industry, hydraulic industry, purification industry, the water treatment industry.

Production line consists:

1, Auto paper de-coiler

   2. Pre-slitting conveyor

3. Marker

4. Auto-counter

5. Filter paper pleating machine (equipped with pre-heater and monitor

2, Machine Specifications

1. Model 55-1050-A Pre-slitter

1) Speed: 0.5m/min-12m/min(adjustable)

2) Adjustable width: 100-1050mm

3) power supply:220V/50HZ

4) motor power:0.75kw

5) working air pressure:0.6Mpa

6) M/C weight:350KG

7) Size:1300*1680*1040mm

2, 55-1050-A paper folding machine

1) 1050mm Max width 1050mm

2) Adjustable pleating height: 8-65mm,

3)  Pleating speed: 0-140pleats/min

4) Power supply: 380v/50hz

5)  Motor power: 5kw

6) Pre-heater power: 4kw

7) Heating temp: normal-250°

8) Working air pressure: 0.6MPa

9) Size: 2000*1720*1500mm

10) Weight: 800KG

1, The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. it is simple operated but smooth and effective. After slitting the paper the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the monitoring system.

2, The marking machine can be marked in different pleat sizes, the marking distance can be arbitrarily set by the computer, and the distance will be accurately marked with the servo motor load.

3, The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the distance of the blades.

4, After marking, the filter paper will be pleated and pre-heated.

5, The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter, even the multilayer folding,
