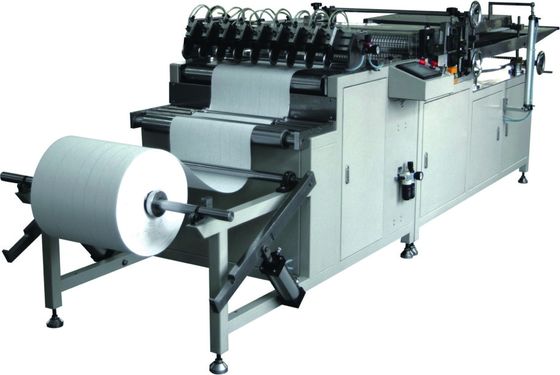

Six Pairs Rollers Air Filter Making Machine , Heavy Duty Hepa Paper Pleating Machine

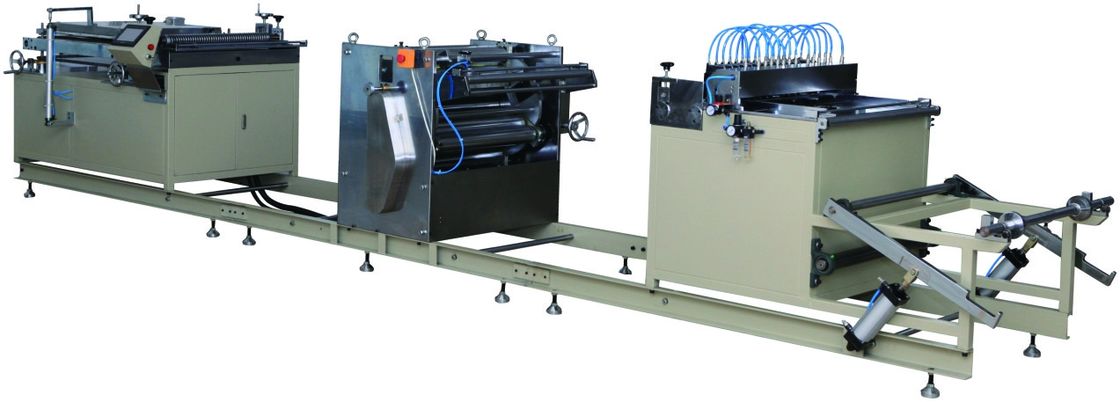

Filter Pleating Machine Full-auto Rotary Paper Pleating Production Line 600

1, General Description

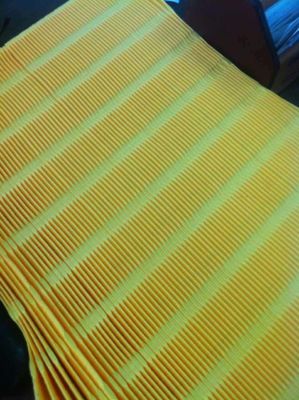

This full auto rotary eco filter paper pleating machine is used for pleating and forming the HDAF filter element.

Consists of :

1, Auto de-coiler
2, Pre-slitter system
3, Auto counter
4, Six pairs rollers in cycle
5, Pleating and collecting system
6, Heater for forming paper
7, Conveyer device

2, Machine Specifications
1, Speed:0~30m/min
2, Max.width:600mm
3, Min.width:30mm
4, Max.height:50mm
5, Min.height:10mm
6, Customize the size of the roller
7, Heating power:6kw
8, Temperature control:normal~300℃
9, Overall power of the production line:7.5kw
10, Working air pressure:0.6MPa
11, Power supply:380V/50HZ
12, M/C weight:1100kg
13, M/C size:6600×1230×1100mm(L×W×H)

1, The pre-slitter uses pneumatic slitting blades, it is simple regulated and evenly pressed.
2, Six sets of rolls are equipped in the same round table which can be easily changed and suitable for producing in different specifications.

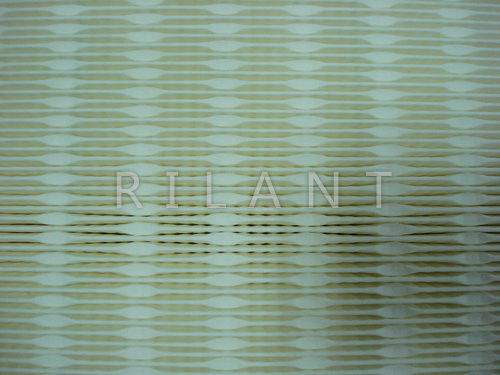

3, The filter paper pleating machine can also make convex hull on paper which is especially suitable for the heavy duty air filter.
4, The process of the machine is auto counting, pleating, pre-heating, forming.
5, This pleating machine has stainless steel conveyor device, so the filter paper is pleated much more evenly and smoothly.
6, It is easy to operate through computer control.
