| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZLQ-420 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Steel Strip Thickness: | 0.3~0.6mm | Diameter Range: | 90-420mm |
|---|---|---|---|
| Machine Size: | 1600×1100×1350mm(L×W×H) | Machine Weight: | 1200kg |
| Application: | Spiral Tube Making | Warranty: | One Year |
| Service: | Engineer Available For Overseas Service | ||
| Highlight: | car air filter production line,air filter manufacturing equipment |
||

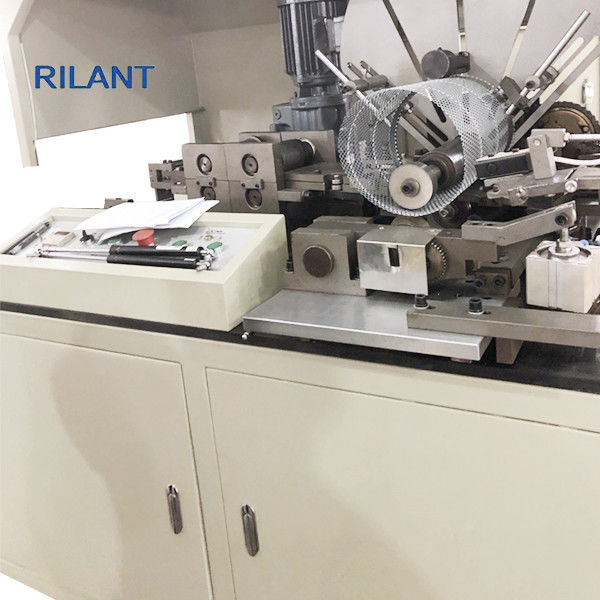

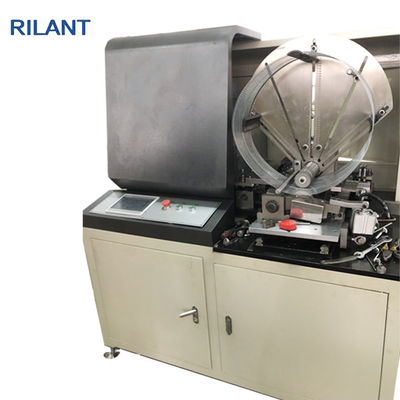

Heavy Duty Air Filters Full Auto Expanded Wire Mesh Spiral Core Making Machine
1, General Description

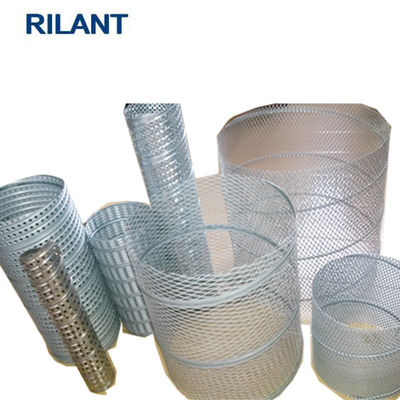

This full auto wire mesh spiral core making machine is used to produce the inner and outer mesh for the heavy-duty air filters directly from the metal mesh roll.
2, Machine Specifications
| Diameter range | 90-420mm |
| Wire mesh thickness | 0.3~0.6mm |
| Wire mesh width | 109mm |
| Motor power | 3KW |
| Power supply | 380V/50HZ |
| Machine weight | 1200kg |
| Machine size | 1600mm*1100mm*1350mm(L*W*H) |
This is full auto wire mesh spiral core making machine has high efficiency, stable and easy to operate.
