Full Auto Filter Pleating Machine Adjustable Height For CNC Knife Paper

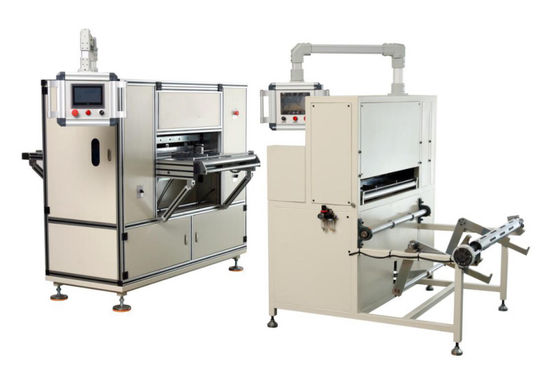

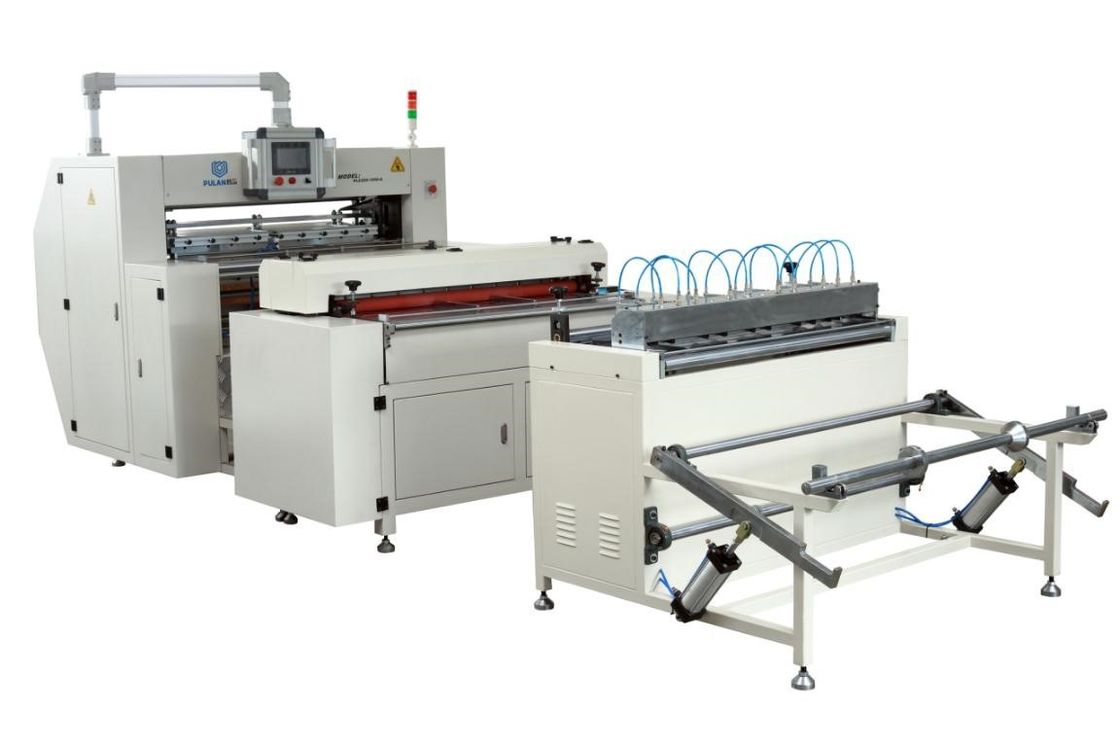

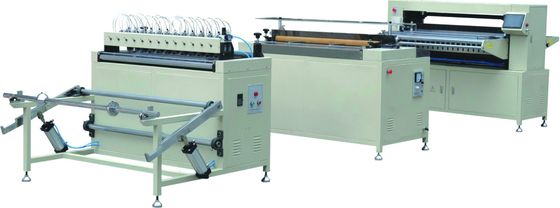

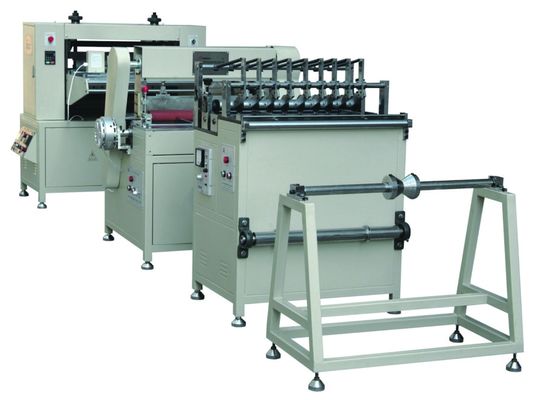

Full-auto CNC knife paper pleating production line

1, General description

1. The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. it is simple operated but smooth and effective. After slitting the paper the conveyor for feeding the filter paper runs in synchronism with th marking machine by equipping the monitoring system..

2,The marking machine can be marked in different pleat sizes, the marking distance can be arbitrarily set by the computer, and the distance will be accurately marked with the servo motor load.

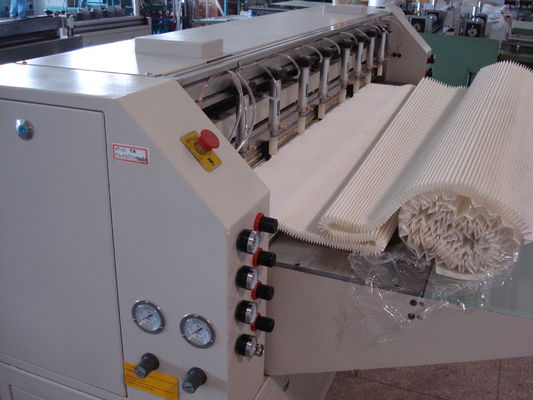

3,The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.

4,After marking, the filter paper will be pleated and pre-heated.

The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.

2, Machine Specifications

1. Max width 600mm

2. adjustable pleating height: 8-65mm

3. pleating speed: 0-140pleats/min

4. power supply: 380v/50hz

5. motor power: 4kw

6. pre-heater power: 4kw

7. heating temp: normal-250°

8. working air pressure: 0.6MPa

9. size: 1600*1720*1500

10. Weight: 700KG

3, Features

The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter , even the multilayer folding
