RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZWG-350 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Weight: | 600kg | Machine Size: | 3400×510×1600mm(L×W×H) |
|---|---|---|---|
| Type: | Pleating Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Condition: | New | Production Speed: | 20 Sheets/min(length：500mm) |
| Warranty: | 1 Year | Application: | HEPA Air Filter |
| Highlight: | HEPA Filter Pleating Machine,20 Sheets/Min Filter Pleating Machine |
||

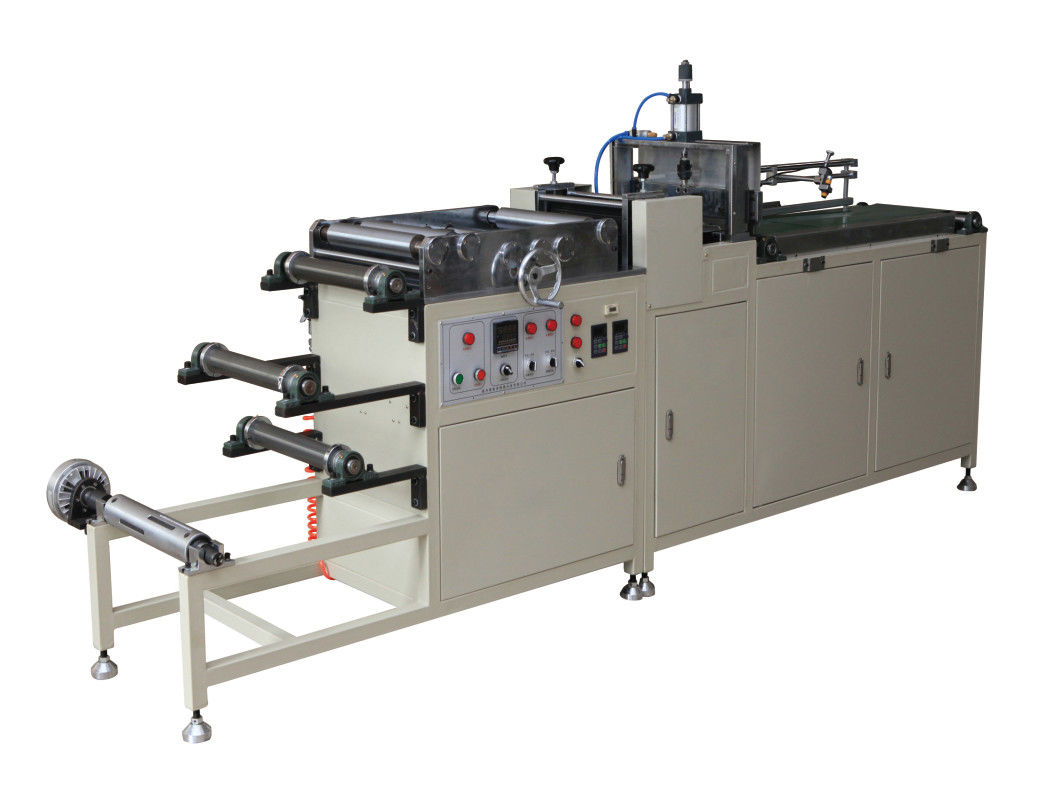

Separated HEPA Filter Corrugating Machine/For Paper or Aluminum
1, General Description
It is technically used in shaping the aluminum foil corrugation of separated high efficiency filter.
2, Machine Specifications
| Max.width | 300mm |
| Max.Coil diameter | 1000mm |
| Speed | 20 sheets/min(length:500mm) |
| Roller | Customize the rollers according to the pleating height and pitch of waves. |
| Power supply | 380V/50Hz |
| Output of the machine | 0.75 |
| Working air pressure | 0.6MPa |
| M/C weight6 | 00kg |
| Main machine size | 3400×510×1600mm(L×W×H) |
3, Machine Features
1,The roller speed can be controlled through variable-speed motor to accommodate different working conditions.
2,The length can be set freely, and cut off automatically.
3,It is equipped with the aluminum edge-doubled device while corrugating. Which prevent the fiber glass form breaking.
4,Use the gathering cylinder to collect products into the container.
5,High efficiency and simple operation.
