RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZWG-700N |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Weight: | 700kg | Machine Size: | 6520×1140×1750mm(L×W×H) |
|---|---|---|---|
| Type: | Pleating Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Condition: | New | Production Speed: | 4~10m/min |
| Warranty: | 1 Year | Application: | Panel Air Filter |
| Highlight: | HEPA Filter Paper Pleating Machine,16KW Filter Paper Pleating Machine |
||

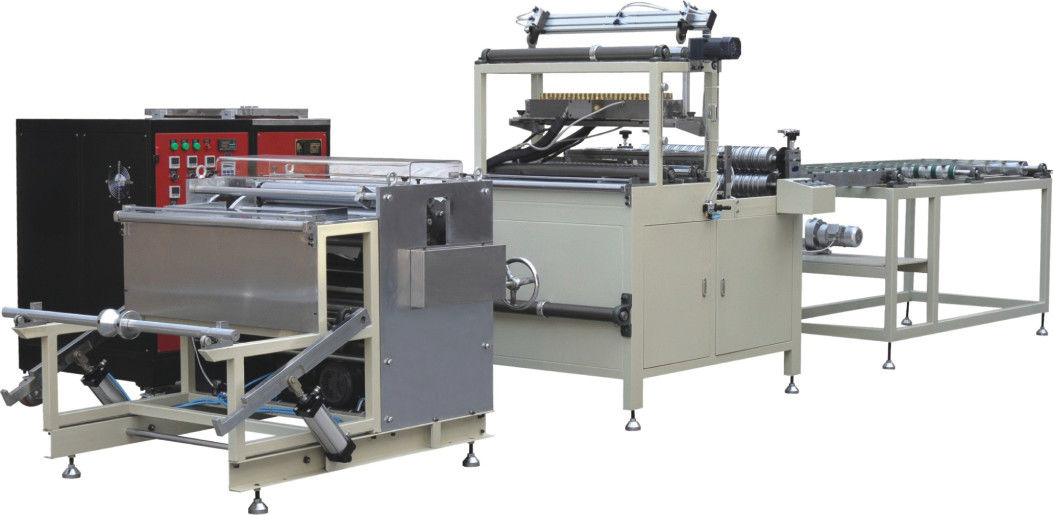

Auto HEPA Filter Mini Paper Pleating Production Line, Filter Making Machine
1, General Description
This HEPA filter CNC mini paper pleating machine is used for manufacturing the HEPA filter.
2, Machine Specifications
| Max.width | 700mm |
| Adjustable pleating height | 20~100mm(any six specifications among the range) |
| Speed | 4~10m/min |
| The interval of gluing | 25.4mm |
| The number of gluing | 2×26Lines |
| Power supply | 380V/50Hz |
| Output of the machine | 16kw |
| Working air pressure | 0.6MPa |
| M/C weight | 700kg |
| Hot melt applicator size | 1100×900×1300mm(L×W×H) |
| Main machine size | 6520×1140×1750mm(L×W×H) |
3, Machine Features
1, Glue dispensing and paper folding are both performed in the identical machine. After paper collected, the filter paper is conversed by longer conveyer belt, which helps to solidify the hot melt and get needed length.
2,The main frame and conveying mechanism are controlled by frequency converter which is easy to adjust.
3, The filter material's journey after glued can be regulated among certain scopes. Which avails the dryness and humidity of hot melt and good for firmly folded.
4,Set xix pairs of rollers together in a round table, which is easier to change and apply to produce in different specifications.
5,Melt quickly, the glue dispensing quantity can be easily controlled by frequency converter.
6,High productive efficiency, good smoothness.
Furthermore, we can customize the paper-pleating production line of different specifications.
