RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZYG-650 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Weight: | 500kg | Machine Size: | 3560×1285×2460mm(L×W×H) |
|---|---|---|---|
| Type: | Pleating Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Condition: | New | Production Speed: | 10m/min |
| Warranty: | 1 Year | Application: | Hepa Air Filter |
| Highlight: | automatic pleating machine,filter paper pleating machine |
||

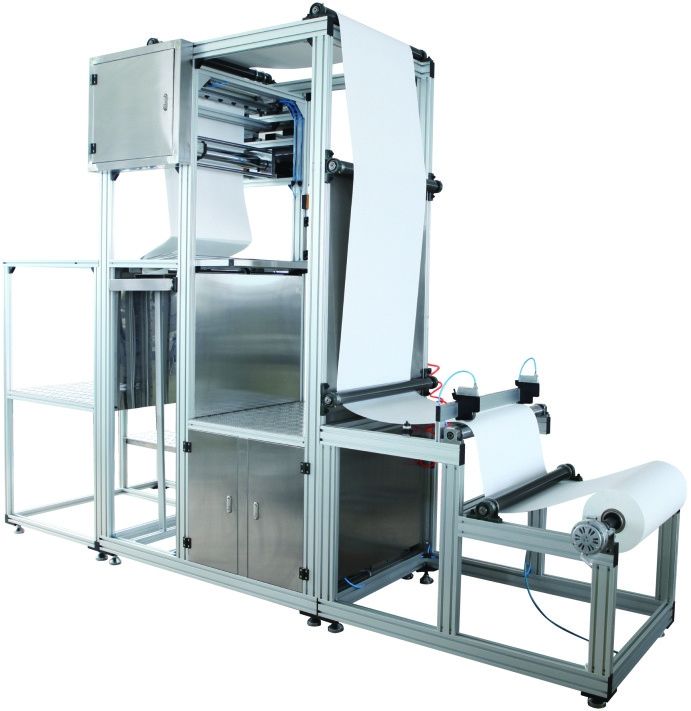

Filter Pleating Machine Separate HEPA Glass Fiber Pleating Machine
1, General Description
This HEPA filter glass fiber pleating machine is used for plate glass fiber and PP filter material folding forming.
2, Machine Specifications
| Product compatibility | 10m/min |
| pleat heights | Any adjustment |
| Paper width | ≦650mm |
| Motor power | 2KW |
| Power supply | 220v/50Hz |
| Working air pressure | 0.6Mpa |
| M/C weight | 500kg |
| M/C Size | 3560×1285×2460mm(L×W×H) |
3, Machine Features
1, This HEPA pleating machine pleating width and height are controlled by computer, can be an arbitrary adjustment.
2, The HEPA pleating machine of glass fiber paper and corrugated molding of aluminum foil and paper can be completed at the same time in the above operation.
3, The HEPA pleating machine can be heated in a print mark, print out the PP filter paper.
4, This HEPA pleating machine is equipped with the frequency converter to match different working conditions.
Contact Person: Mr. Flavio
Tel: +86 18994464917
Fax: 86-512-5013-0917
