CNC Mini Paper Automatic Pleating Machine , Mechanical Automotive Filter Manufacturing Machines

PU Filter Making Machine Full Auto Hepa Filter CNC Mini Paper Pleating Production Line

1, General Description

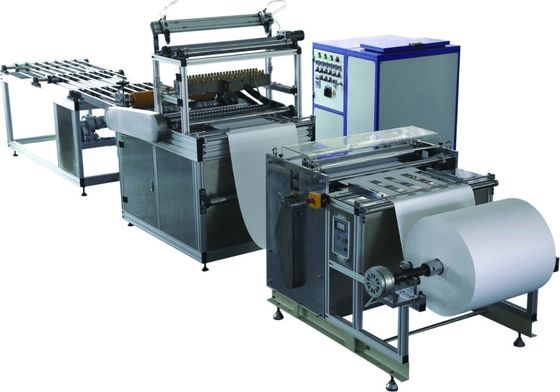

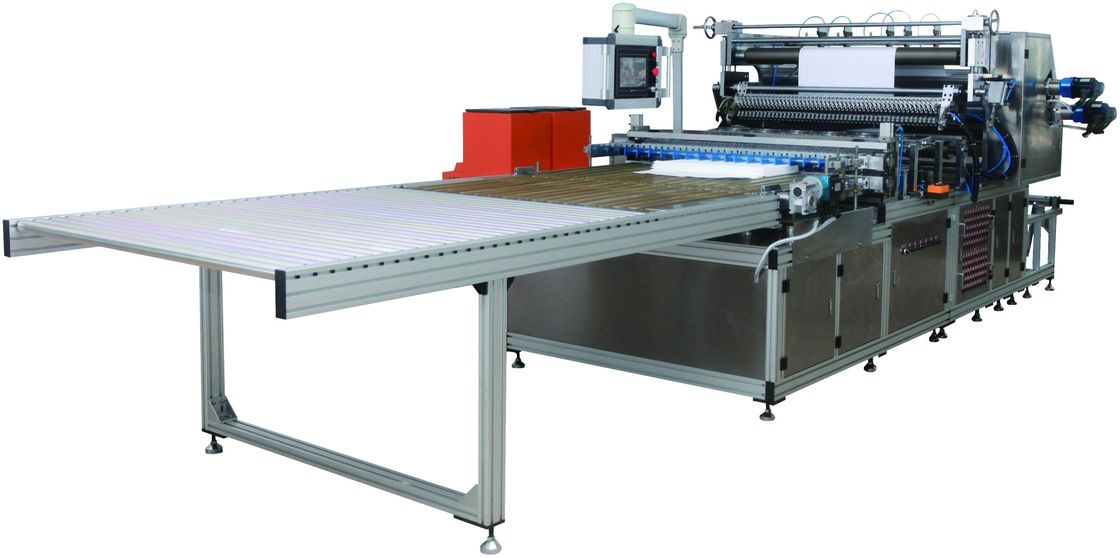

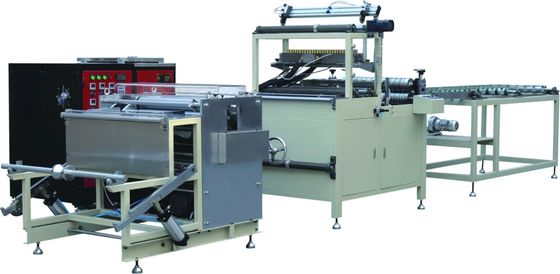

    This HEPA filter CNC mini paper pleating machine is used for manufacturing the HEPA filter.

2, Machine Specifications

 1. diameter of elements:≤ 1000 mm

 2. width of elements: ≤ 1320mm

３．Width of product: ≤ 1300mm

 4.  production capability: 25m/min

 5. adjustable height range 15-100mm

 6 distance between gluing lines: 25.4mm

 7. number of gluing lines: 2*48lines

 8. power supply: 380V/50HZ

 9. main power: 46kw

10 working air pressure: 0.6Mpa

11.  Machine size : : 6400* 1860* 1860mm       Gluing machine size: 860*800*1160mm(L*W*H)

3, Machine Features

• This pleating machine adopts automatically mechanical, electrical and pneumatic control as a whole, which is high efficiency and steady working.
• The operation adopts the computerization control screen which is an easy view and easy operation.
• The air-bulking shaft is used when paper feeding, also equipped with the tensile force brake control system, which can control the tensile force of paper feeding automatically.
• This machine equipped with the paper edge cutting device.
• The pleating height can be chosen freely, no need changing the rollers, the servo-control system can accurately ensure pleating neatly.
• Easy to choose any of six gluing functions like” continuously, separately, two sides, one side, auto, manual.”
• The running speed of the machine can be regulated easily.
• The pleating height adjusted and the front-back movement of the paper collecting system can be regulated easily and steadily.
• The conveying speed of the conveyor system is stopped by the system through computer regulation.
