| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZF4-3mmX1380mm |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Size: | 5900×5000×2500mm(L×W×H) | Machine Weight: | 2T |
|---|---|---|---|
| Material: | Cold Rolled Plate, Pickled Plate, Galvanized Sheet, Hot Rolled Sheet | Product Name: | Aluminum Coil Slitting Line |
| Condition: | New | Coil Thickness: | δ1.0~3mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Highlight: | automatic cut to length machines,steel coil cutting machine |
||
Copper Coil Cut To Length Machine Slitting Line Length Cutting Machine
1, General Description

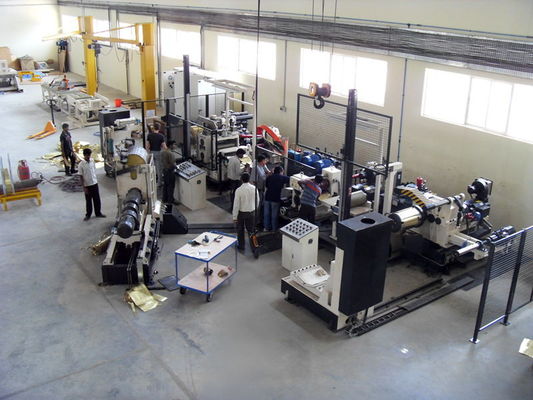

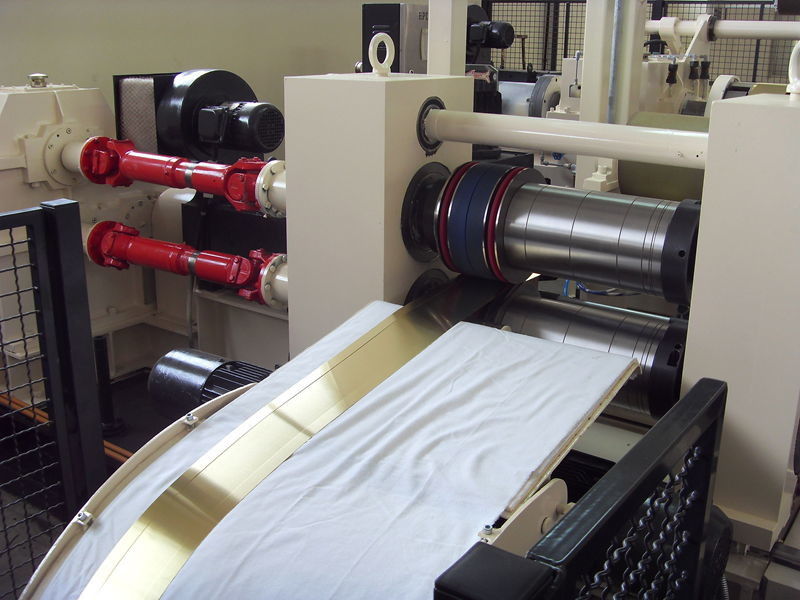

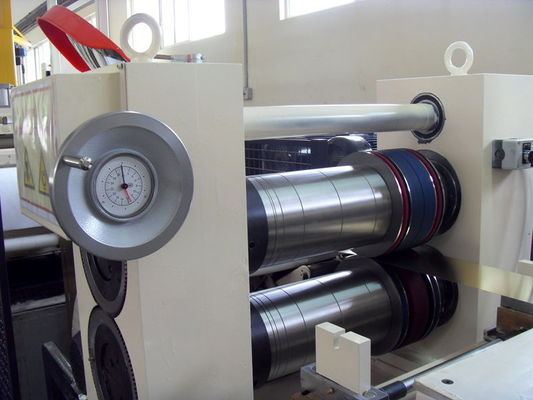

This aluminum Slitting line is equipped with a horizontal cutting line and slitting line. It is used to straighten and rewind the rolled aluminum strip. It can also cut and level the aluminum plates and collect them.
2, Machine Specifications
Raw material specifications:
Coil thickness: 0.3~3.0mm
Coil width: 600 ~ 1380m
Finished product specifications:
Finished product thickness: 0.3~3mm
Finished product width: 28 ~ 1340mm
Number of cuts: 3 - 20
Shear width deviation: ≤±0.1mm
Finished layer fault tolerance: ≤ ± 0.5mm
Finished tower type tolerance: ≤ ± 2mm
Technical Parameters
Belt speed: 15m/min
Machine speed: 150m/min-300m/min
