| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZF-4 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Size: | 5900×5000×2500mm(L×W×H) | Machine Weight: | 2T |
|---|---|---|---|
| Material: | Cold Rolled Plate, Pickled Plate, Galvanized Sheet, Hot Rolled Sheet | Product Name: | Steel Coil Cut To Length Straightening Line |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Name: | Steel Coil Cutting Machine Cut To Length Steel Coil Shearing Line | Warranty: | 1 Year |
| Highlight: | automatic cut to length machines,rotary shear cut to length line |
||

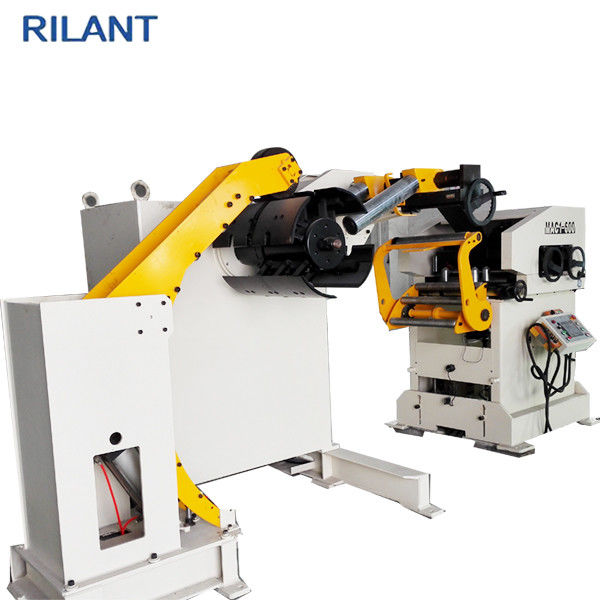

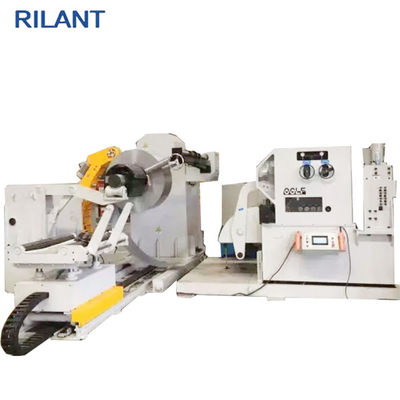

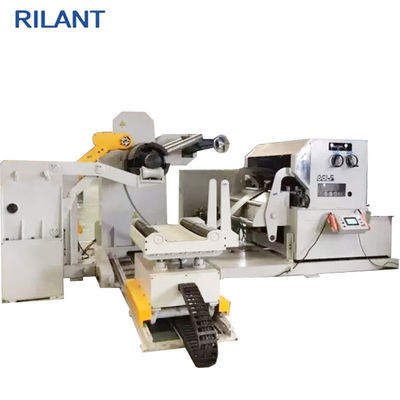

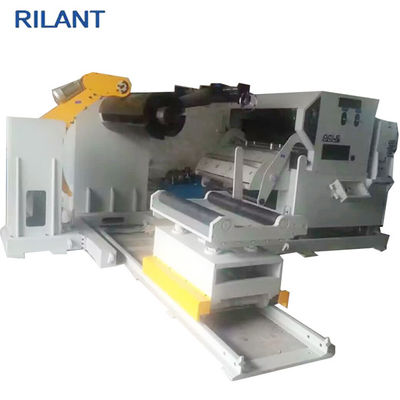

Steel Coil Cut To Length Machine Decoiler Feeding Cutting 3IN1 Machine Length Cutting Machine
1, General Description
This steel coil decoiler cutting line is a new three-in-one servo leveling feeder specially developed for stamping production of medium and thick plates with wide material width and high yield strength. Equipment feeding roller and leveling roller are specially treated, hardness High, wear-resistant and long-life; the grip roller surface is made of plowing electro-blasting and hard chrome plating, which increases the friction between the roller and the belt to ensure that the feeding accuracy will not be affected by the slip during the feeding process. The new automatic oiling device (option) is equipped at the discharge port, and the oil-coated wheel is soft wool felt roll, which can help protect the surface of the material and evenly spread the oil layer. The Japanese servo motor is used to ensure high-precision feeding; the operation panel adopts color liquid crystal display, large-size touch screen, high-definition operation screen, and operation safety protection system, even for the first time users can operate with peace of mind; sound operating system humanized design, will shorten the preparation work. The advanced automatic diagnosis system helps the operator to quickly control the excellent performance of the machine; the design concept of enhancing the safety factor makes the safety and service life of the equipment longer.
2, Machine Specifications
1 Material: cold rolled plate, pickled plate, galvanized sheet, hot rolled sheet
2 Material surface treatment: no treatment
3 Material thickness: 0.6-6.0mm (please refer to the material correction capacity table)
4 material broadband: 70-1500mm
5 Yield strength: ≤245N/mm2
6 Tensile strength: ≤397N/mm2
7 roll inner diameter: 470-520mm
8 roll outer diameter: 1400mm
9 Roll quality: 10000Kg
This machine combines decoiler feeder and cutting into one machine, convenient and easy to operate.
