| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | QKJ-6×1600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Size: | 3000*1150*1700mm(L*W*H) | Color: | Customized |
|---|---|---|---|
| Application: | Steel Coil Cutting To Length | Product Name: | Steel Coil Cut To Length Straightening Line |
| Material: | SS,Steel,colored Or Galvanized Sheet | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Highlight: | automatic cut to length machines,steel coil cutting machine |
||

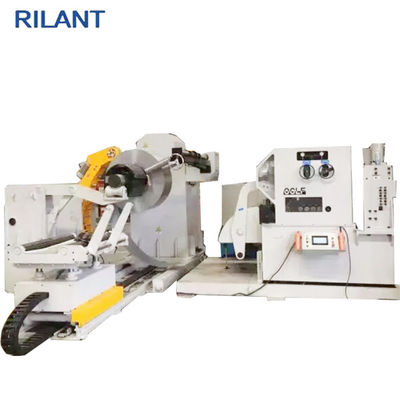

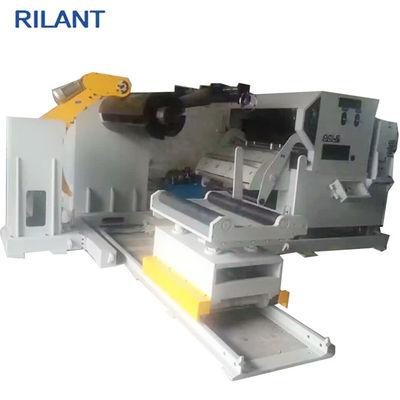

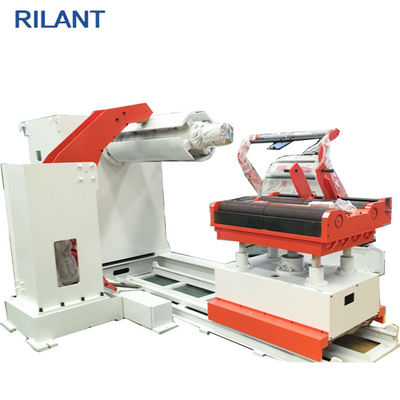

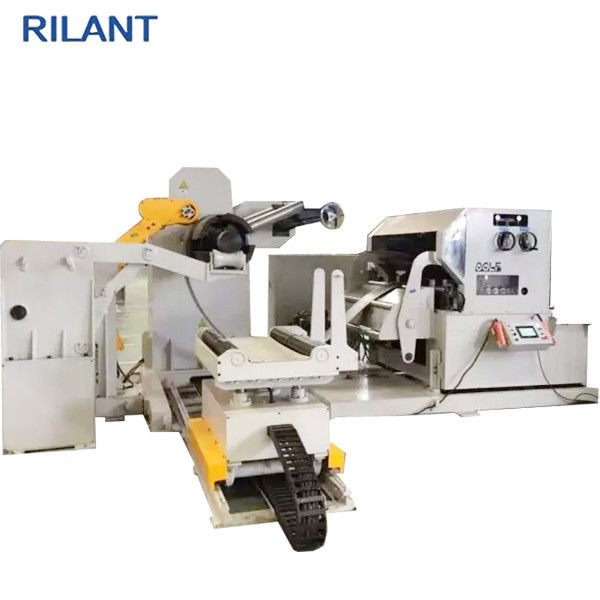

Steel Coil Uncoiler feeding Leveling Cutting Machine Steel Coil Cut To Length Line
1, General description
The uncoiler feeding leveling cutting line is used for level the rolled strip and cut it into a set size steel sheet and collect it into a crucible.
2, Machine Specifications
1, Coil material specifications
Applicable material: stainless steel, Japan CORTEN A, SM50 A steel coil
Mechanical properties: 480 Mpa<σb≤686Mpa σS≥360Mpa
Coil thickness: 1.5 ~ 6mm
Coil width: 500～1500m
Steel coil inner diameter: ф470～ф520mm (plus rubber ring ф610mm)
Steel coil outer diameter: ≤ ф1600mm
Coil weight: ≤10T
2, Cutting finished product specification
Fixed length: 500-4000mm
Fixed tolerance: L=3m ≤±0.5 (3.0mm low carbon cold rolled steel strip)
Diagonal tolerance: L=3m ≤±1.0 (3.0mm low carbon cold rolled steel strip)
Flatness after leveling of the board: ≤ 2mm/m2
Pallet weight: ≤5000kg
3, Cutting finished product specification
Fixed length: 500-4000mm
Fixed tolerance: L=3m ≤±0.5 (3.0mm low carbon cold rolled steel strip)
Diagonal tolerance: L=3m ≤±1.0 (3.0mm low carbon cold rolled steel strip)
Flatness after leveling of the board: ≤ 2mm/m2
Pallet weight: ≤5000kg
4, Equipment other specifications
Leveling speed: 0~50m/min
When 1.5mm≤t≤2mm, the maximum speed is 50m/min, (ie not less than 20 pieces per minute, and each piece is 2400mm long);
When 3mm≤t≤6mm, the maximum speed is 40m/min (that is, not less than 12 pieces per minute, and each piece is 2400mm long)
Power supply: 380V/50HZ three-phase four-wire
Compressed air: pressure P = 0.4 ~ 0.5Mpa
Installed capacity: about 195KW
Main equipment drive motor: uncoiler motor AC4kw
Leveling machine DC speed regulating motor DC110kw
Fixed length servo motor AC30kw
Shearing motor AC18.5kw
Production line area (approx.): length 28mx width 9m *height 2.5m
Unit direction: from right to left (on the console facing the unit)
Production operator: 2 technicians, 2 general workers
Equipment color: customized
3, Features
This coil leveling and cutting line can cut the steel strip automatically, with simple operation and speed is fast.
