Steel Coil Slitting Line Cut To Length Line Machine Thick Plate
1, General Description

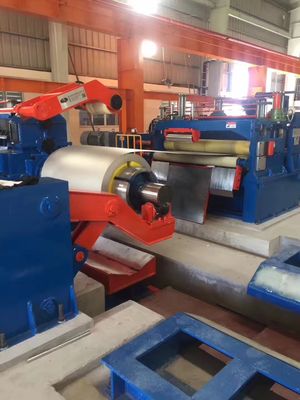

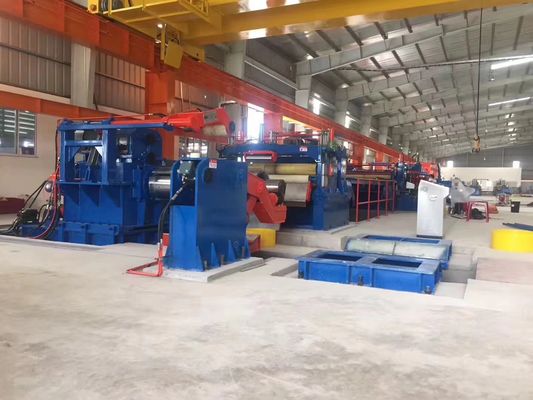

This 4-16×2200 Slitting line is equipped with a horizontal cutting line and slitting line. It is used to straighten and rewind the rolled steel strip. It can also cut and level the steel plates and collect them.
2, Machine Specifications
A, Steel coil raw material parameters
Material:Q235,stainless steel
Plate thickness:Q235:4～16mm；
stainless steel: 4～10mm
Plate width:900～2500mm
Coil I.D:ф610mm/ф760mm
Coil O.D:ф1200～ф2000mm
Coil weight:≤35T
B, Product parameters

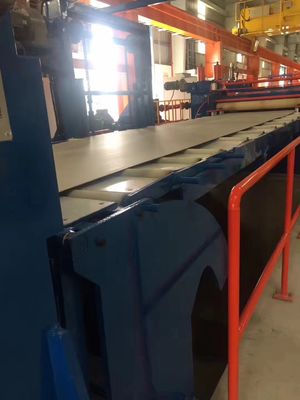

★ Shear finished product parameters
Specified lengths:3000-8000mm
length tolerance:±1mm/3m；±1.5mm/6m
3.Diagonal tolerance:±1.5mm/3m；±3mm/3m
4.leveling accuracy:≤1.5mm/m2
5.Pallet weight:≤10000kg

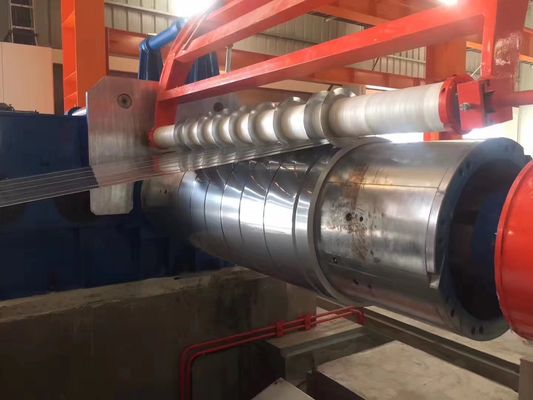

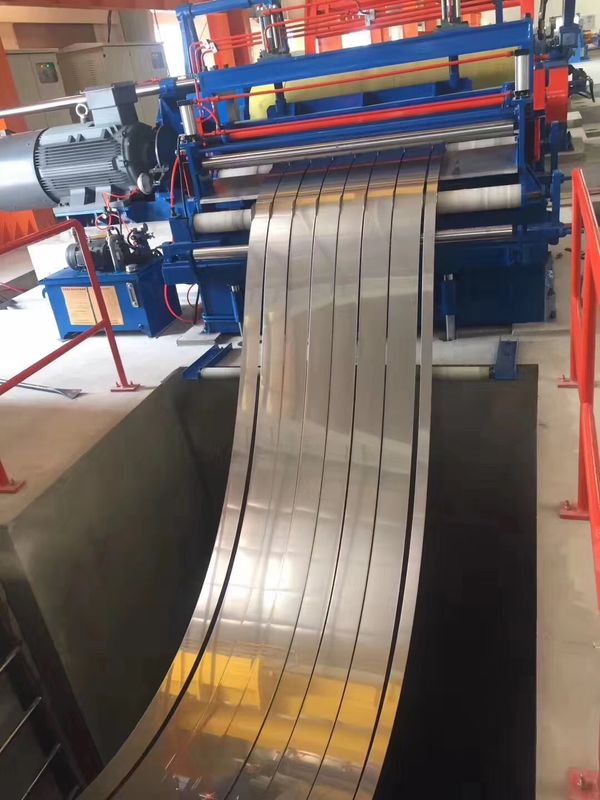

★ Slitting finished product parameter
Number of slitting: Q235 plate thickness 4.0-6.0mm Max.20pcs
Min. slitting width 80mm,speed:0-60m/min
Q235 plate thickness 8.0-10mm Max.15pcs
Min. slitting width:145mm,speed 0-40m/min
Q235 plate thickness 12-16mm Max.10pcs
Min. slitting width 200mm,speed 0-20m/min
Stainless steel: plate thickness 4.0-6.0mm Max.20 pcs
Min. slitting width 80mm, speed 0-60m/min
stainless steel thickness 8.0-10mm Max. 10pcs Min. slitting width 145mm, speed 0-40m/min
Slitting waste:10-25mm
3.Width tolerance:
≤±0.5mm thickness below 6mm
≤±0.8mm thickness below 6mm
Burr:≤5%
Camber: ≤0.8mm/2m；≤5mm/12m；
Coil diameter:ф760mm
Coil Max. O.D.:ф2000mm
Coil Max. weight:35T
Coil Max. thickness:16mm (Q235)
C, Other specifications
