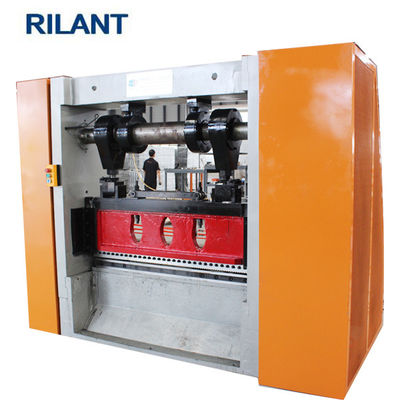

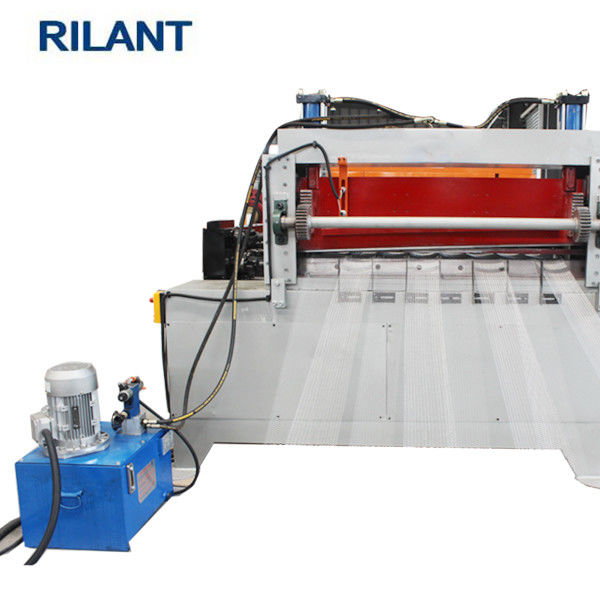

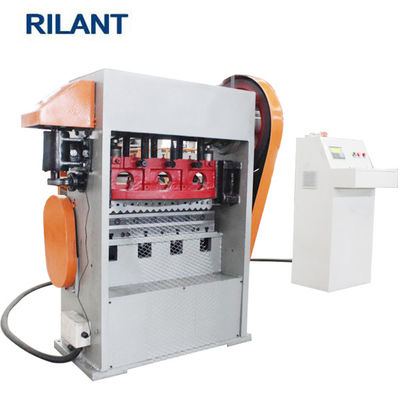

2.2KW 600mm Expanded Metal Mesh Machine 300 Strokes / Min Production Speed

Heavy Duty Expanded Metal Mesh Machine 600 mm Expanded Metal Mesh

1, General Description

The high speed expanded metal mesh machine is high speed and CE certificated. it is used in filter mesh making, industry, civil architecture, road and railway etc.

This expanded metal mesh machine can process cold-rolled steel, aluminum material to expanded mesh with hexagonal, diamond, half round.etc. The expanded process is finished by crankshaft connecting rod system, moved by cam, feed by stepping motor, the feeding distance can be easily adjusted. This machine has characteristics of the structure, easy operation and steady performance.

2, Machine Specifications

1, Material: low carbon steel, galvanized steel, Aluminum, stainless steel and so on;

2, Thickness of steel coil: ≤1.5mm for low carbon steel; for stainless steel less than 0.5mm;

3, Max. Coil width: 600mm;

4, Expanding speed: Max. 300 strokes/minute;

5, Motor power: 2.2KW;

6, Expanding force: 6.5T;

7, Motor type: step motor

8, Overall size of machine(L*W*H): 1200*900*1700mm

9, Machine weight: about 2 tons

10, Controlled by PLC+touch screen; Length calculate+automatic cutting

3, Machine Features

This expanded metal mesh machine has very high speed, performance and quality is stable.
