| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZD-1250 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Max.coil Width: | 1250mm | Machine Size: | 2100*1000*1410 Mm |
|---|---|---|---|
| Machine Weight: | 2T | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | Name: | Expanded Metal Mesh Machine |
| Application: | Construction,flatten Wires | ||
| Highlight: | expanded wire mesh machine,expanded mesh making machine |
||

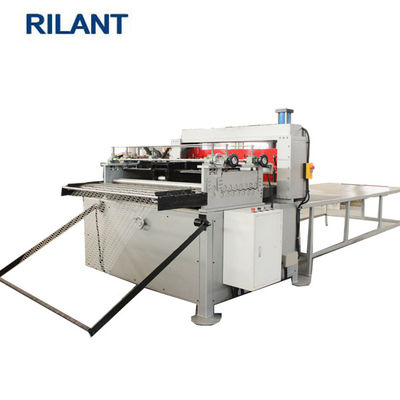

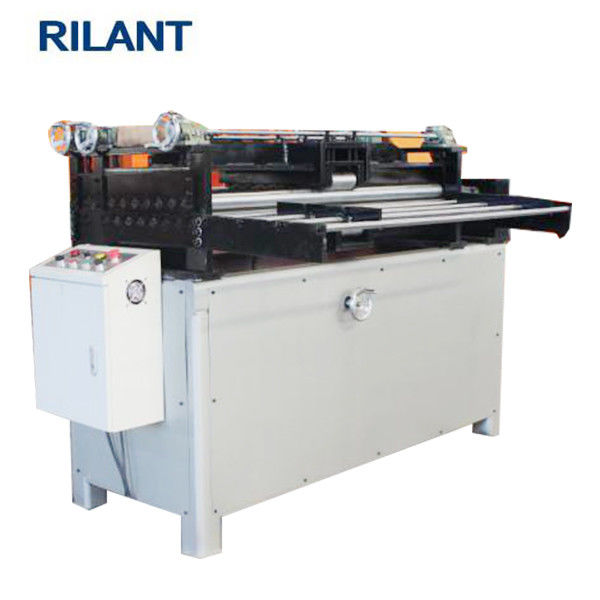

Expanded Metal Mesh Machine Straightening Slitting And Cutting Machine Galvanized Expanded Metal
1, General Description
The expanded metal mesh leveling slitting and cutting machine combined the function of straightening and
slitting, it saved space and increased production efficiency.
2, Machine Specifications
1, Max width of expanded metal mesh:1250mm
2, Max thickness of raw material:1.0mm
3, Quantity of rolls:17 rolls
4, Working method: 2 rolls feeding+15 rolls leveling
5, Diameter of rolls:50-70mm
6, Surface Hard: HRC58
7, Motor power: 7.5KW
8, Weight:about 2.0T

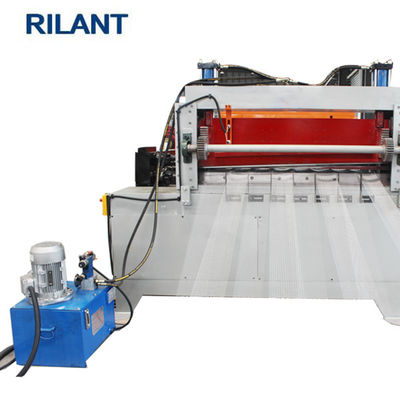

9, Hydraulic cutting device
10, Max. Slitting strips: 3 strips
11, Machine size(L*W*H):2100*1000*1410 mm
12, Working speed: frequency control
3, Machine Features
This expanded mesh leveling and cutting machine has very high speed, performance and quality is stable.
4, Our Service
5, Package And Delivery
6, FAQ
