RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZF-4 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Material Thickness: | Max.1.5mm | Max.coil Width: | 1250mm |
|---|---|---|---|
| Machine Size: | 2300*1650*1930mm | Machine Weight: | 7.5T |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Product Name: | High Speed Steel Expanded Metal Mesh Machine For Sale | ||
| Highlight: | expanded wire mesh machine,high speed expanded metal machine |
||

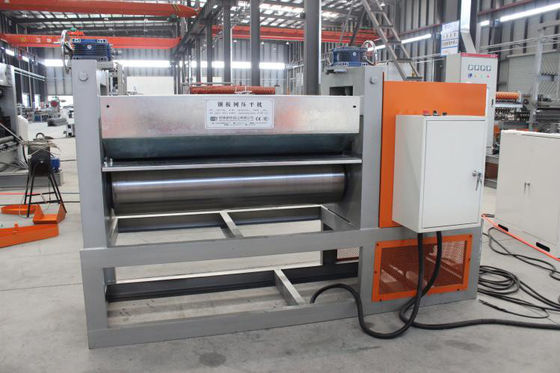

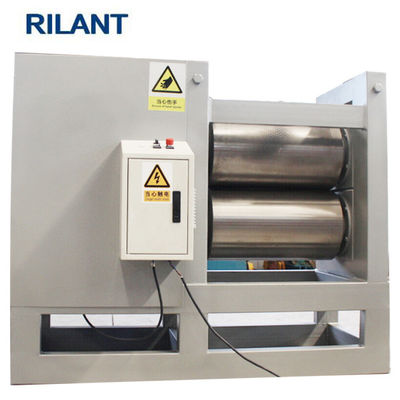

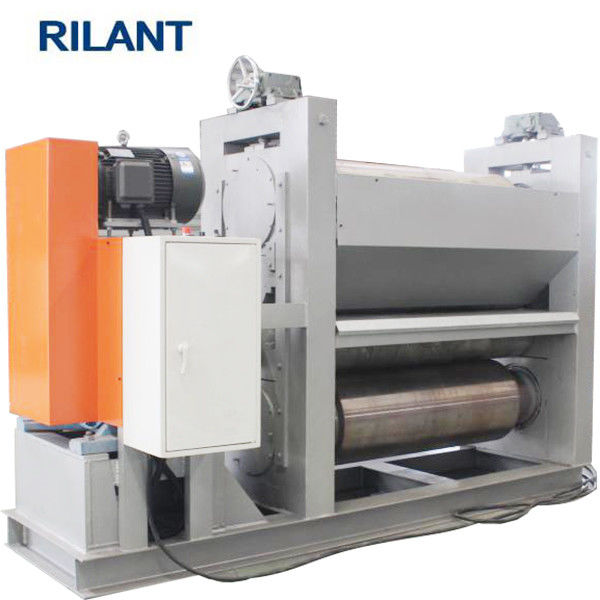

Expanded Metal Machine Four Roller Flattening Machine Flattened expanded metal Mesh
1, General Description
The high speed expanded metal flattening machine is high speed and CE certificated. it is used in filter mesh making, industry, civil architecture, road and railway etc.
2, Machine Specifications
1, Material and thickness: Max.1.5mm
2, Work speed: frequency control
3, Length of working rolls (two middle rolls): 1250mm
4, Diameter of working rolls (two middle rolls): Φ300mm
5, Hardness of working rolls: HRC63.3~63.8
6, Length of support rolls (up and down rolls): 1150mm
7, Diameter of support rolls (up and down rolls): Φ450mm
8, Hardness of support rolls: HRC53.8~54.8
9, Material of roll: high frequency quenching alloy
10, Motor power: 5.5-7.5KW
11, Overall size(L*W*H): 2300*1650*1930mm
12, Weight of machine: about 7.5 T
13, Main drive by special gear motor, adjustable by frequency converter
3, Machine Features
This four flattening machine has very high speed, performance and quality is stable.
4, Our Service
5, Package And Delivery
6, FAQ
