| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZ-1250 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 300 Strokes/min | Max.coil Width: | 1250mm |
|---|---|---|---|
| Machine Size: | 2500*1400*2150mm | Expanding Force: | 25T |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Name: | Expanded Metal Mesh Machine |
| Product Name: | Automatic Heavy Duty Expanded Metal Mesh Machine Manufacturer | Material: | Steel,metal,low Carbon Steel Sheet,stainless Steel Sheet |
| Highlight: | high speed expanded metal machine,expanded mesh making machine |
||

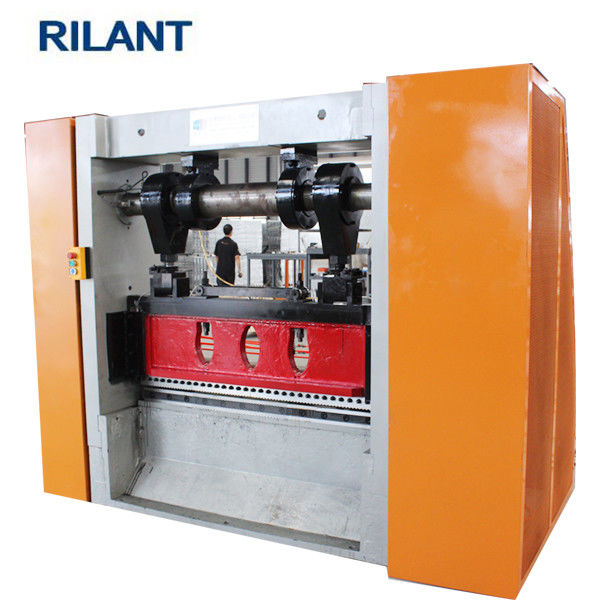

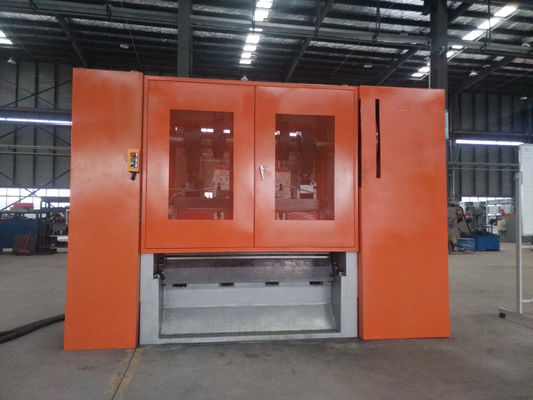

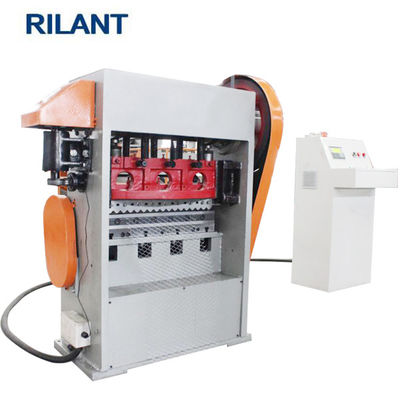

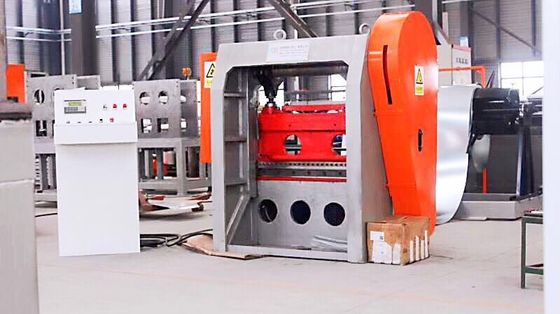

Heavy Duty Air Filter Expanded Metal Mesh Machine 1250 Wire Mesh Making Machine
1, General Description
The high speed expanded metal mesh machine is high speed and CE certificated. it is used in filter mesh making, industry, civil architecture, road and railway etc.
2, Machine Specifications
1, Material: low carbon steel, galvanized steel, Aluminum, stainless steel and so on;
2, Thickness of steel coil: ≤1.5mm for low carbon steel; for stainless steel less than 0.5mm;
3, Max. Coil width: 1250mm;
4, Expanding speed: Max. 300 strokes/minute;
5, Motor power: 7.5KW;
6, Expanding force: 25T;
7, Motor type: step motor
8, Overall size of machine(L*W*H): 2500*1400*2150mm
9, Machine weight: about 4.7 tons
10, Controlled by PLC+touch screen; Length calculate+automatic cutting
3, Machine Features
This expanded metal mesh machine has very high speed, performance and quality is stable.
4, Our Service
5, Package And Delivery
6, FAQ
