Name: 380V 50HZ Oil Filter Making Machine Fast Turntable Silk Printing Machine
Brand: Suzhou Rilant Machinery Co., Ltd.
SKU: SZAS-110
Availability: InStock

Home Products Oil Filter Making Machine

380V 50HZ Oil Filter Making Machine Fast Turntable Silk Printing Machine

Product Details:

Place of Origin:	China
Brand Name:	RILANT
Certification:	CE
Model Number:	SZAS-110

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard export package
Delivery Time:	45 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Production Speed:	35-45 Pcs/hour	Machine Size:	21001500 1915mm（LWH）
Machine Weight:	500kg	Keyword:	Oil Filter Making Machine
Warranty:	1 Year	Application:	Oil Filter Silk Printing
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Condition:	New
Highlight:	commercial oil filter machine , oil filter production line

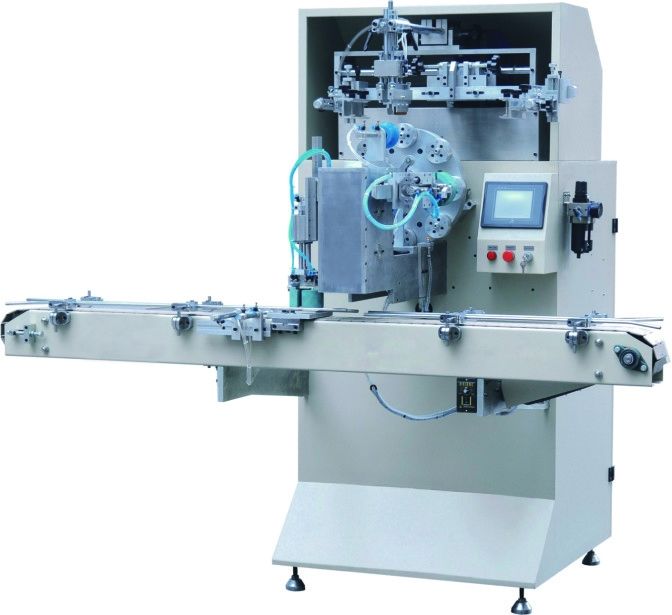

Oil Filter Making Machine Full Auto Turntable Silk Printing Machine

1, General Description

This high speed silk screen printer is used for printing on the shells of the spin-on filters.

2, Machine Specifications

1. Filter diameter range: Φ55- Φ110mm

2. Printing speed: 35-45 pcs/min

3. Filter height: 60mm-150mm

4. Working air pressure: 0.6Mpa

5. Main motor power: 0.75Kw

6. Conveyer motor power: 120W

7. Power supply: 380V/50HZ

8. M/C weight: 500kg

9. M/C dimension: 2100*1500* 1915mm(L*W*H)

3, Machine Features

1, This full auto turntable silk printing machine adopts the cams composite structure, which is running stable and precisely location.

2, This full automatic silk printing machine has the automatic circulation of uploading, printing and downloading by arm robot.

3, This is monitor controlled and simple operation.

380V 50HZ Oil Filter Making Machine Fast Turntable Silk Printing Machine 0

380V 50HZ Oil Filter Making Machine Fast Turntable Silk Printing Machine 1

4, Our Service

380V 50HZ Oil Filter Making Machine Fast Turntable Silk Printing Machine 2

5, Package And Delivery

6, FAQ

380V 50HZ Oil Filter Making Machine Fast Turntable Silk Printing Machine 4
