| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZMB-1A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Rated Capacity: | 100 KVA | Machine Size: | 1070×520×1950mm(L×W×H) |
|---|---|---|---|
| Machine Weight: | 700kg | Warranty: | 1 Year |
| Application: | Oil Filter Spot Welding | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Condition: | New | Voltage: | 380v/50hz |
| Highlight: | oil filter manufacturing machine,oil filter production line |
||

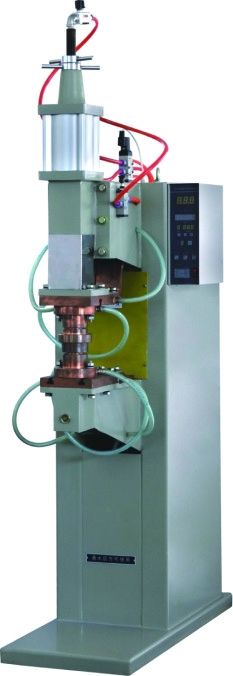

Oil Filter Making Machine Convex Spot Welding Machine For Welding The Screw Bottom Plate
1, General Description
This oil filter spot welding machine is technically used to weld the screw bottom plate and fix a plate of the oil and fuel filters.
2, Machine Specifications
| Rated capacity | 100KVA |
| Rated primary voltage | 380V/50Hz |
| Phase number | 1 |
| Adjustable series | 2 |
| Rated primary current | 263A |
| Working air pressure | 0.4MPa |
| M/C weight | 700kg |
| M/C size | 1070×520×1950mm(L×W×H) |
1. The welding machine is to pneumatically press the electrode to press the welding piece and directly achieve the purpose of spot welding by the heating method of the welding current. The spot welding time is short, the efficiency is high, and the welding quality is stable.
2. The upper and lower working strokes and auxiliary strokes of the upper electrode can be adjusted evenly.
3. The welding machine controller has four procedures: automatic control of the pressurization, energization, maintenance, and rest.
4. The welding machine has a cooling system.
