RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZAS-6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 24 Pcs/min | Machine Size: | 1560×710×2050mm(L×W×H) |
|---|---|---|---|
| Machine Weight: | 1200kg | Application: | Oil Filter End Cap Tapping |
| Warranty: | One Year | Service: | Engineer Available For Overseas Service |
| Highlight: | commercial oil filter machine,oil filter production line |
||

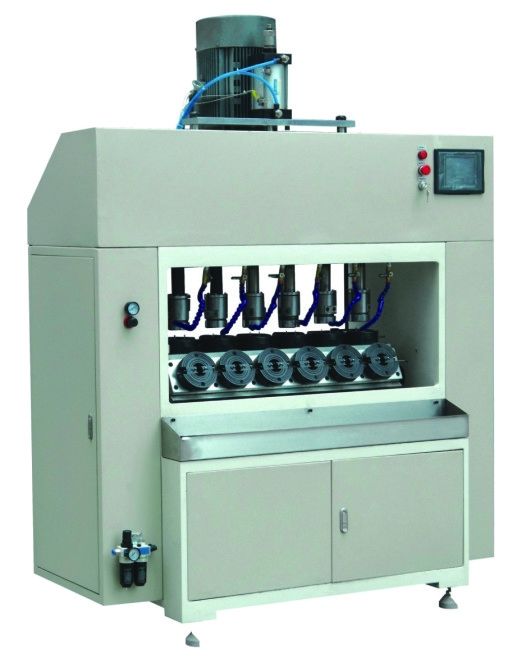

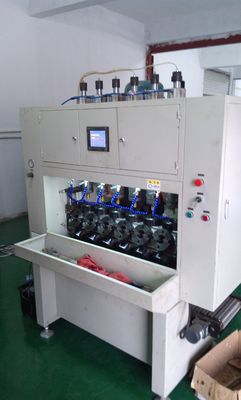

Oil Filter Making Machine Full Auto Turntable Six-station Tapping Machine
1, General Description

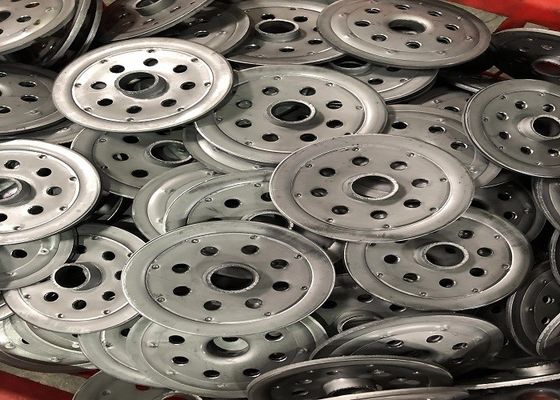

This turntable six-station tapping machine is mainly used for tapping the bottom plate of oil and fuel filters.
2, Machine Specifications
| Product capability | 24pcs/min |
| Tapping scope | M16~M38(metric),3/4"~3/2"(inch) |
| Workpiece input number/time |
diameter≤M24 6pcs/time; M26~M30 4pcs/time; ≥M30,3/2" 2pcs/time; |
| Workpiece scope | Φ60mm~Φ130mm |
| Tap fixed ID | Φ23mm |
| Motor power | 5.8KW |
| Cooling pump power | 120W |
| Working air pressure | 0.6MPa |
| Power supply | 380V/50Hz |
| M/C weight | 1200kg |
| M/C size | 1560×710×2050mm(L×W×H) |
1, All spare parts are precisely made, to ensure the workpiece vertical to the screw tap.
2, The tapping parts set the spray cooling system to keep the workpiece smooth and the tap durable.
3, This tapping machine works automatically, The main axis tapping in counterclockwise, and rapid turning back after finished tapping, then turning oppositely, the chained convey, fix the workpiece and travel control all work automatically.
4, This high-efficiency machine can tap six workpieces at the same time.
5, This tapping machine is computerized by PLC control, simple to operate.
