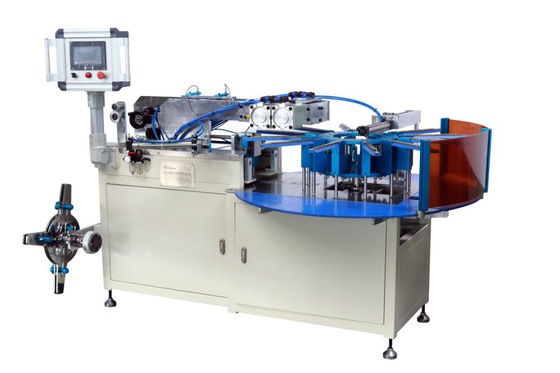

Full Auto Steel Clipping Oil Filter Making Machine 12 Pcs / Min Production Speed
Oil Filter Making Machine Full Auto Steel Clipping Machine
1, General Description
This full-auto steel clipping machine is professionally used for clipping the paper ends using the steel strip.
2, Machine Specifications
| Product capability | 12pcs/min |
| Filter paper height | 30~250mm |
| Pleating height | 10~38mm |
| Sizes of Steel strips | a) thickness 0.25~0.3mm b)width 12mm c)coiled material Φ inner Dia.>150mm,Φ outer Dia.<600mm |
| Motor power | 100W |
| Power supply | 380V/50Hz |
| Working air pressure | 0.6MPa |
| M/C weight | 450kg |
| M/C size | 1930×750×1380mm(L×W×H) |
1. The whole working cycle of strip forming, feeding, clamping, cutting and retracting is automatically completed by PLC control gas path and machinery, with high speed and high efficiency.

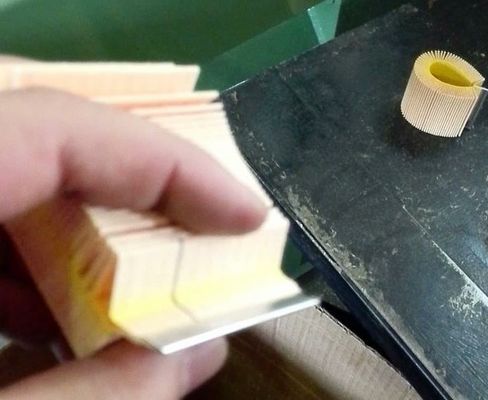

2. Use the steel clip filter origami joint to avoid leakage of the filter element.
3. The strip steel has bump treatment in the forming process, and the paper is firmly attached and not easy to fall off.
4, The height and width of the paper can be easily adjusted, and can maintain its consistency.
5. The pneumatic and electrical components used in this machine are made of high quality imported parts and are durable.
