RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZPQ-120 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 80-180 Pcs/hour | Machine Size: | 2463×1219×2033mm(L×W×H) |
|---|---|---|---|
| Machine Weight: | 700kg | Warranty: | 1 Year |
| Application: | CAV Paper Coiling | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Condition: | New | ||
| Highlight: | commercial oil filter machine,oil filter manufacturing machine |
||

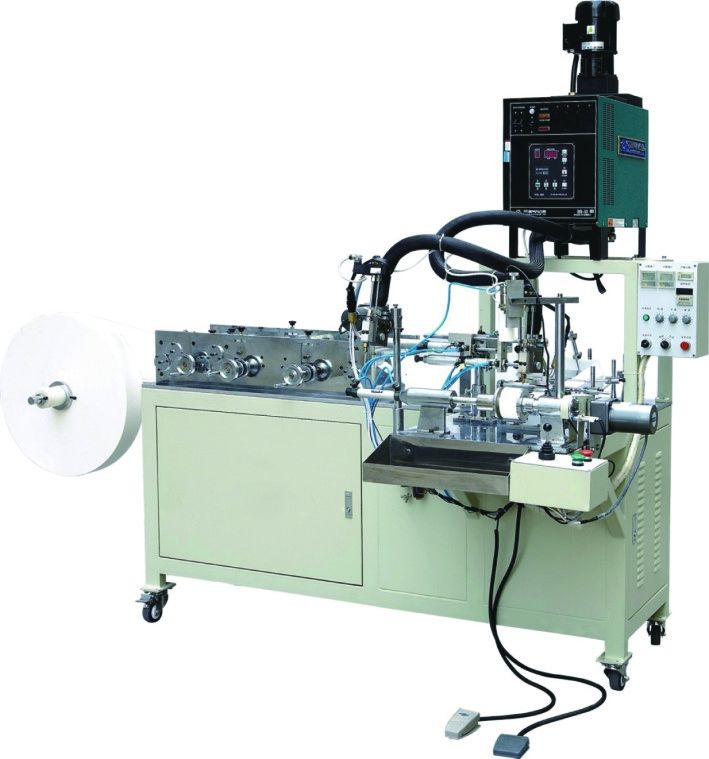

Fuel Filter Making Machine CAV Paper Coiling Machine Glue Injection
1, General Description
This fuel filter CAV coiling machine is technically suitable for coiling and shaping the CAV coil paper of filter element.
2, Machine Specifications
| Production capability | 80~180 pcs/h |
| Adjustable coil diameter | Φ50~Φ130mm |
| Adjustable coil width | 70~120mm |
| The capacity of holt melt unit | 10kg |
| Heating power of hot melt unit | 6kw |
| Power supply | 220V/50Hz |
| Working air pressure | 0.6MPa |
| M/C weight | 700kg |
| M/C size | 2463×1219×2033mm(L×W×H) |
1. According to the diameter of the roll paper, the speed of the roll paper can be adjusted arbitrarily to make the elastic tight.
2. This fuel filter CAV coiling machine can obtain different winding diameters through three-stage counting and proximity switch control.
3, The melting speed is fast, the amount of glue can be adjusted by the frequency converter, the adjustment is convenient, and the hose and the nozzle are independently temperature controlled.
4. The glue injection cylinder can control the glue in the paper tube and the left and right sides through the PLC program to ensure that the paper core of the roll paper does not leak glue.
5. This fuel filter CAV coiling machine has the function of automatically heating hot melt glue regularly, which can save working time.
6. This fuel filter CAV coiling machine can fold double-layer fuel filter paper.
7. All electrical components of this machine are made of high quality imported parts, which are durable.
