Spot Welding Oil Filter Making Machine Eight Station With Turntable Bottom Plate

Product Details:

Place of Origin:	China
Brand Name:	RILANT
Certification:	CE
Model Number:	SZTN-200-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard export package
Delivery Time:	45 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Rated Capacity:	200 KVA	Machine Size:	1500×800×1700mm(L×W×H)
Machine Weight:	850kg	Item:	Oil Filter Making Machine
Warranty:	1 Year	Application:	Oil Filter Spot Welding
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Condition:	New
Highlight:	commercial oil filter machine , oil filter manufacturing machine

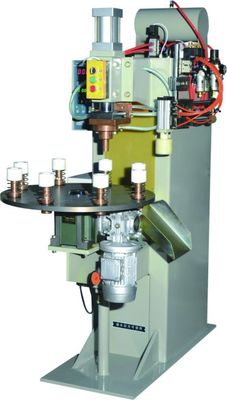

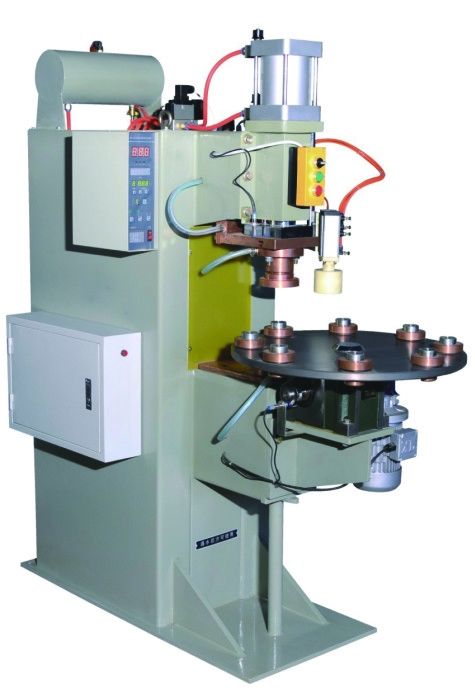

Oil Filter Making Machine Eight Station Turntable Bottom Plate Spot Welding Machine Filter Cover Welding

1, General Description

This turntable bottom plate welding machine is suitable for the automatic welding machine for automobile diesel oil filter cover and fixed plates.

2, Machine Specifications

1, Rated capacity: 200KVA

2, Rated primary voltage: 380V/50Hz

3, Phase number: 1

4, Rated primary current: 263A

5, Working pressure: 0.4Mpa

6, M/C weight: 850kg

7, M/C size: 1500×800×1700mm(L×W×H)

3, Machine Features

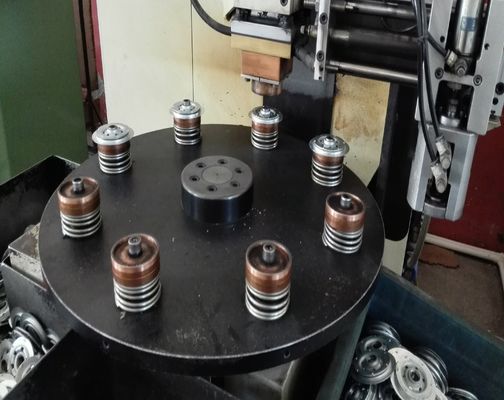

1, This machine has 8 stations on the workpiece, the workpiece automatically removed after welding.

2, The welding is through pneumatic pressing the electrode welding, and the welding current through direct heating method to reach the spot.

3, Welding time is short, high efficiency, stable welding quality.

Spot Welding Oil Filter Making Machine Eight Station With Turntable Bottom Plate 0

Spot Welding Oil Filter Making Machine Eight Station With Turntable Bottom Plate 1

Spot Welding Oil Filter Making Machine Eight Station With Turntable Bottom Plate 2

4, Our Service

Spot Welding Oil Filter Making Machine Eight Station With Turntable Bottom Plate 3

5, Package And Delivery

6, FAQ

Spot Welding Oil Filter Making Machine Eight Station With Turntable Bottom Plate 5
