RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZMB-2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 38 Pcs/min | Diameter Of The Cap: | Freely |
|---|---|---|---|
| Machine Size: | 1105×755×1050mm(L×W×H) | Machine Weight: | 250kg |
| Warranty: | 1 Year | Application: | Sealed Plate Gluing |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
| Highlight: | oil filter manufacturing machine,oil filter production line |
||

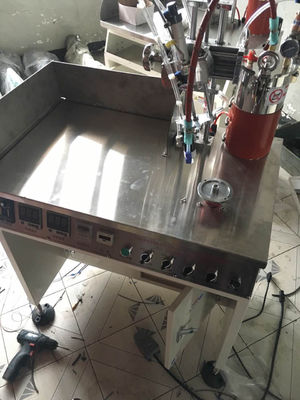

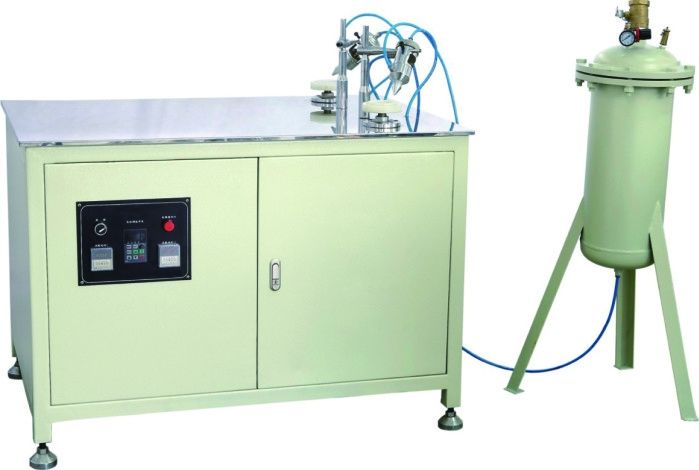

Oil Filter Making Machine Sealed Plate Gluing Machine
1, General Description
This spin-on filter sealed plate gluing machine mainly used for gluing the sealed plate of the spin-on filters.
2, Machine Specifications
1, Procution capability:38pcs/min
2, Diameter of the boiled cap:freely
3, Glue tank capacity:15kg
4, working air pressure:0.3MPa
5, Power supply:220V/50Hz
6, Motor power:90W
7, M/C weight:250kg
8, Size of the main machine:1105×755×1050mm(L×W×H)
9, Size of the glue tank:Φ300×1100mm
1, This machine is light and well built, With precise structure, which is easy to be protected,
2, High efficiency with two glue heads.
3, New designed head is used which make the sealing function safer.
4, The speed of the main axis can be controlled through variable speed motor to accommodeate different working demands.
5, Adopts the time relay control, which is operated easily and glued accurately.
