| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZZJ-2A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 40 Pcs/min | Inner Diameter Range: | 50-110mm |
|---|---|---|---|
| Machine Size: | 1700×1600×1600mm(L×W×H) | Machine Weight: | 600kg |
| Warranty: | 1 Year | Application: | Oil Filter End Cap Gluing |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
| Highlight: | commercial oil filter machine,oil filter production line |
||

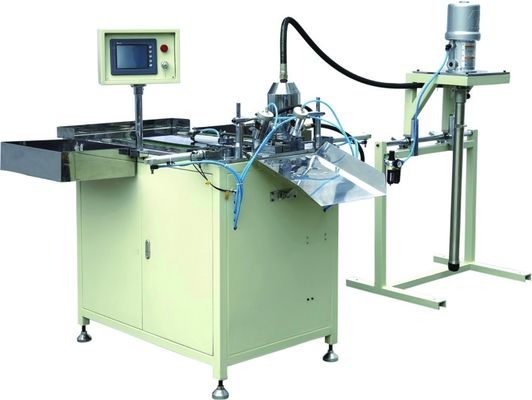

Oil Filter Making Machine Full Auto End Caps Gluing Machine Hot Melt Gluing Machine
1, General Description
This end caps gluing machine is used for glue dispensing PVC on the end caps of the filter element.
2, Machine Specifications
1, The available ID of the end cap:Φ50~Φ110mm
2, Max end caps input number/time:4PCS/time
3, Speed:45 pcs/min
4, Viscidity of glue:≤50000CP
5, Glue kind:PVC(high temp.solidified adhesive)
6, Power supply:220V/50Hz
7, Conveyer motor power:2KW
8, Working air pressure:0.6MPa
10, Pump air pressure:≤0.45MPa
11, M/C weight:600kg
12, M/C size:1700×1600×1600mm(L×W×H)
1, The action of end caps loading and gluing can be regulated easily by computer control, so it is coordinate and work normally.
2, This machine has the function of evenly gluing on the end cap of the filter.
3, This machine has excellent characteristics such as high efficiency and easy operation.
4, Adopts import gluing pump guarantee for accurately gluing.
5, Specially equipped the gluing tanks which make gluing much more evenly.
