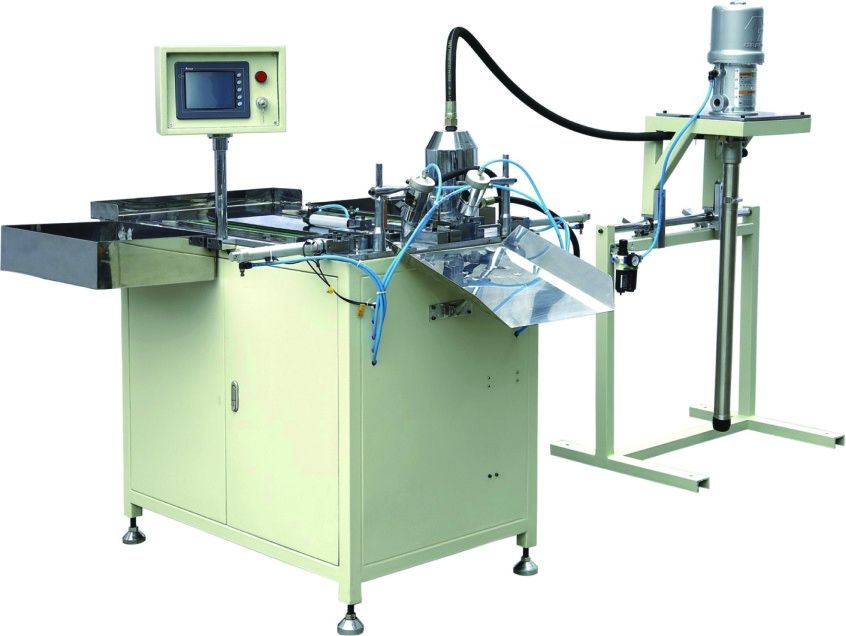

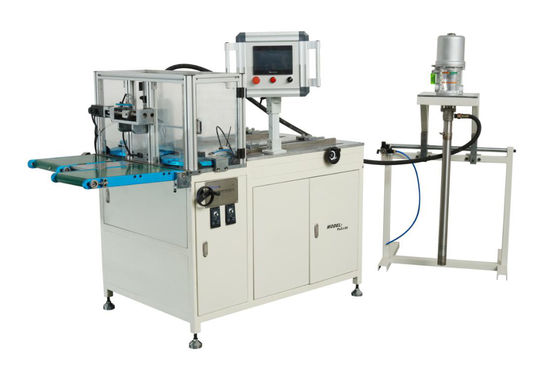

Oil Filter Making Machine Full Auto End Caps PVC Gluing Machine
1, General Description
This end caps PVC gluing machine is used for glue dispensing PVC on the end caps of the filter element.
2, Machine Specifications
| The available ID of the end cap | Φ50~Φ110mm |
| Max end caps input number/time | 2PCS/time |
| Speed | 30 pcs/min |
| Viscidity of glue | ≤50000CP |
| Glue type | PVC(high temp.solidified adhesive) |
| Power supply | 380V/50Hz |
| Conveyor motor power | 0.12KW |
| Working air pressure | 0.6MPa |
| Pump air pressure | ≤0.45MPa |
| M/C weight | 450kg |
| M/C size | 1200×1600×1800mm(L×W×H) |
1, The action of end caps loading and gluing can be regulated easily by computer control, so it is coordinate and works normally.
2, This machine has the function of evenly gluing on the end cap of the filter.
3, This machine has excellent characteristics such as high efficiency and easy operation.
4, Adopts import gluing pump guarantee for accurately gluing.
5, Specially equipped the gluing tanks which make gluing much more evenly.
