| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZQY-30-350 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 40 Pcs/min | Diameter Of Tube: | 30-75mm/55-135mm/90-350mm |
|---|---|---|---|
| Machine Size: | 1600×800×1240mm(L×W×H) | Other Name: | Filter Production Machinery |
| Warranty: | 1 Year | Application: | Oil Filter Spiral Tube Making |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Oil Filter Spiral Tube Making Machine |
| Condition: | New | ||
| Highlight: | commercial oil filter machine,oil filter production line |
||

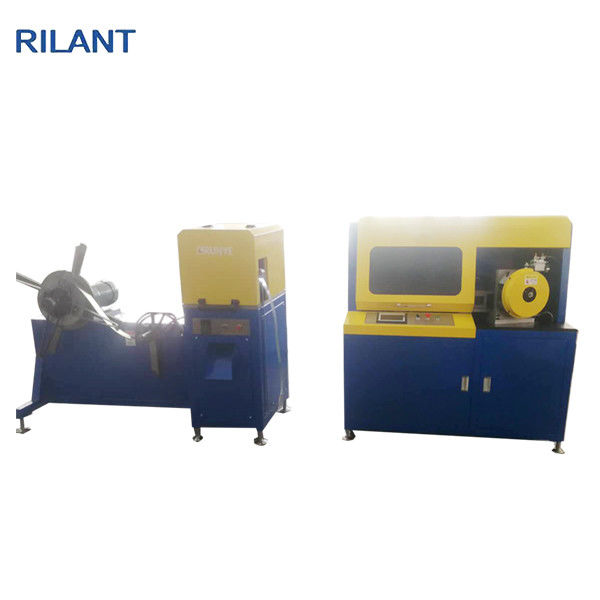

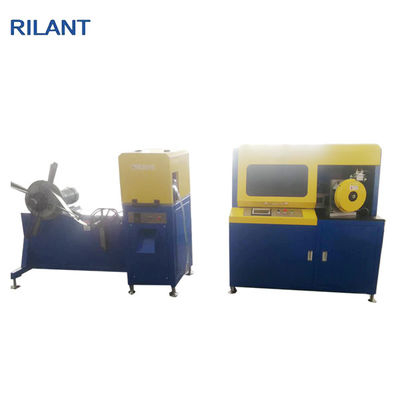

Oil Filter Making Machine Full Auto Spiral Tube Making Machine Perforated Core Making
1, General Description

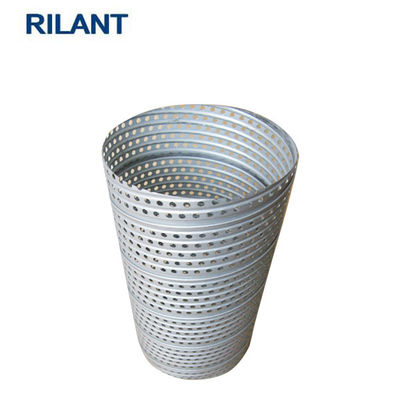

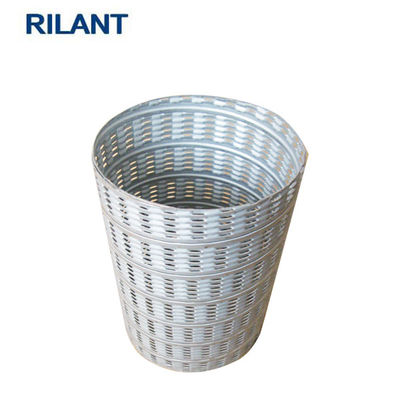

This spiral tube making machine is used in manufacturing the center tubes of the oil and fuel filters. it can produce the perforated or louvered holes.
2, Machine Specifications
| Product capability | 40 pcs/min |
| Diameter of the center tube | Φ30~Φ75mm/ 55~135mm/ 90~350mm |
| Length of center tube to be processed | freely |
| Steel plate thickness | 0.25~0.35mm/0.4~0.6mm |
| Motor power | 3kw |
| Power supply | 380V/50Hz |
| Working air pressure | 0.6MPa |
| M/C weight | 800kg |
| Size of the main machine | 1600×800×1240mm(L×W×H) |
1, The spiral tube making machine can easily change the diameter of spiral tube in a short time.
2, Cut the needed length according to the customers' specifications.
3, Can adjust the clutch according to different thickness of the steel strip.
4, The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
5, Adopts hydraulic pressure drive, which has strong power and good stable.
