RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZRX-1000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 2 Pcs/min | Machine Weight: | 600kg |
|---|---|---|---|
| Machine Size: | 1500×730×1400mm(L×W×H) | Application: | Filter Element Hot Melt Threading |
| Warranty: | One Year | Service: | Engineer Available For Overseas Service |
| Highlight: | air filter manufacturing machines,air filter manufacturing equipment |
||

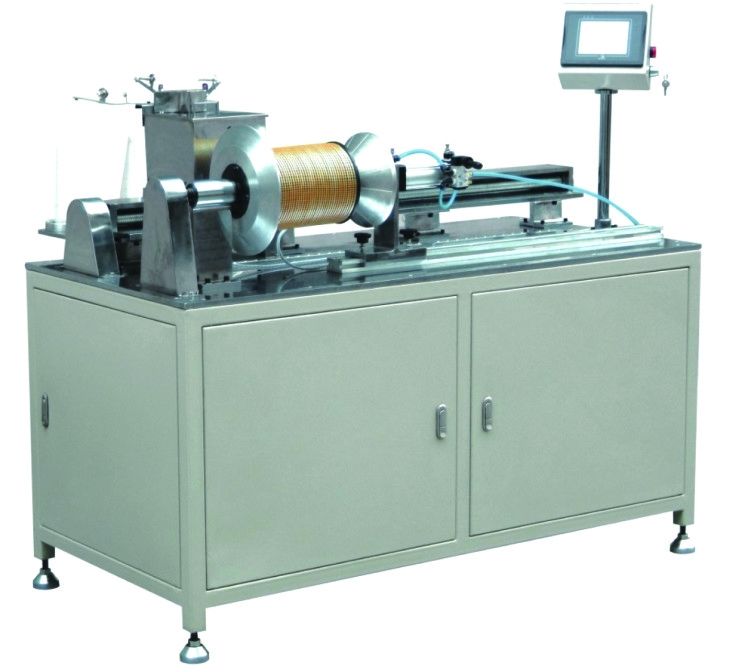

Car Air Filters Making Machine HDAF Filter Element Hot Melt Threading Machine
1, General Description

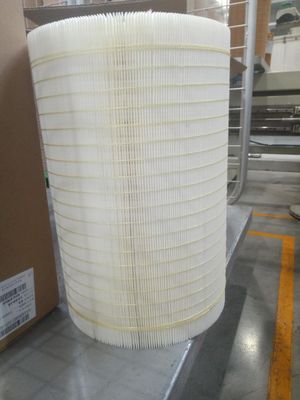

This HDAF hot melt threading machine is mainly used for the outer circular threading reinforcement for oil filter element and heavy duty air filter element, and the filter element after threading has good strength and strong deformation resistance.
2, Machine Specifications
| Production speed | 2pcs/min |
| Filter element diameter | Ф400mm |
| Filter element length | 1000mm |
| Main machine power | 4.2kw |
| Working air pressure | 0.6Mpa |
| Power supply | 380v/50Hz |
| Temp.control scope | normal temp.~300℃ |
| Main machine size | 1500×730×1400mm(L×W×H) |
3, Machine Features
1. This machine is suitable for winding many glass fiber wires and ordinary wires together with hot melt glue.
2. Product spacing is controlled by computer with high precision.
3. Winding mode: spiral and circular.
4. Flat and round threads wound on the product can be changed by changing the threading nozzle.
