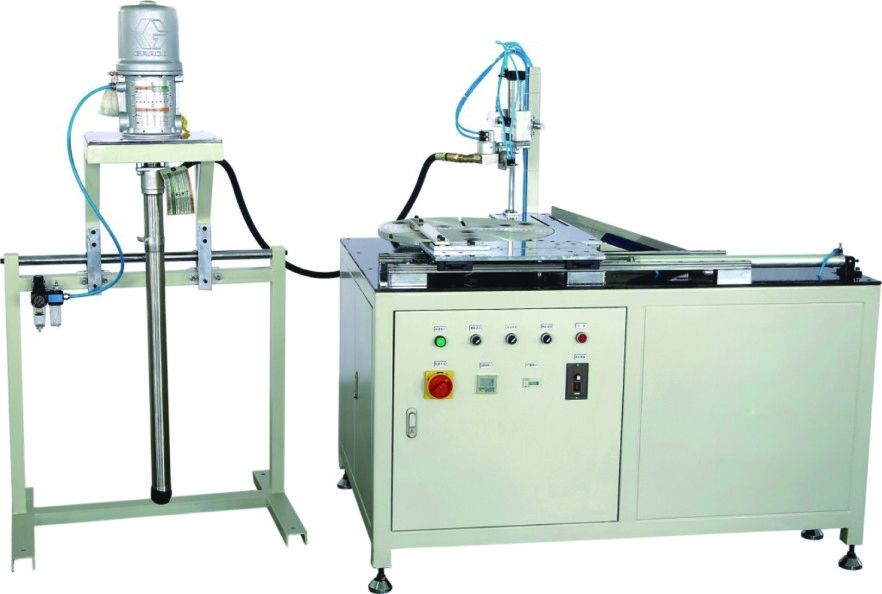

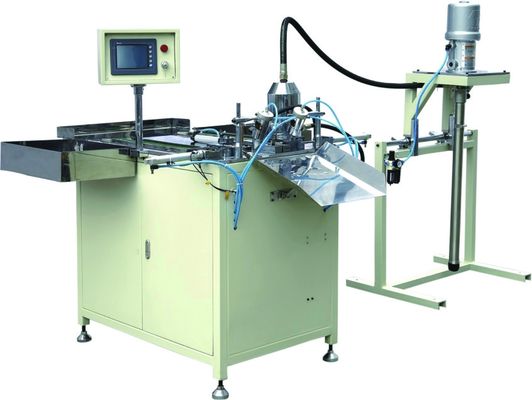

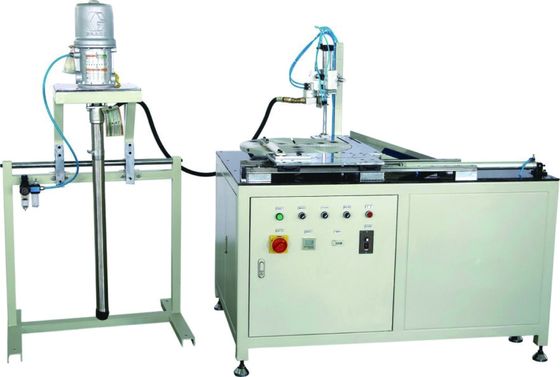

Full Auto Truck Air Filter Making Machine PVC End Cap Gluing Machine
1, General Description
This machine is applied to dispense PVC on the end caps of the heavy duty air filter.
2, Machine Specifications
| The outer diameter of the end cap | ≤500mm |
| Gluing width | ≤50mm |
| Viscidity | ≤50000CP |
| Suitable adhesives | PVC filter adhesive(high temperature solidified adhesive) |
| Production capability | 4pcs/min |
| Power supply | 220V/50Hz |
| Main machine power | 500w |
| Working air pressure | 0.6MPa |
| The air pressure of the gluing pump | ≤0.45MPa |
| The working pressure of the gluing head | 4MPa |
| M/C weight | 300kg |
| M/C size | 1405×950×1300mm(L×W×H) |
3, Machine Features
1, This machine can glue evenly with wide using range.
2, Using the double sealing modes, to make the nozzle break off glue thoroughly after gluing.
3, The auto mover system push the glued products into the production line automatically to avoid affecting the product quality while transferring.
4, Adopts the excellent import pump, ensure gluing accurately.
