| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZLG-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 20 Pcs/min | Machine Weight: | 250kg |
|---|---|---|---|
| Machine Size: | 3000×620×1030mm(L×W×H) | Item: | Car Air Filter Making Machine |
| Product Name: | Semi-auto Cabin Filter Bonding Machine | ||
| Highlight: | car air filter production line,air filter manufacturing equipment |
||

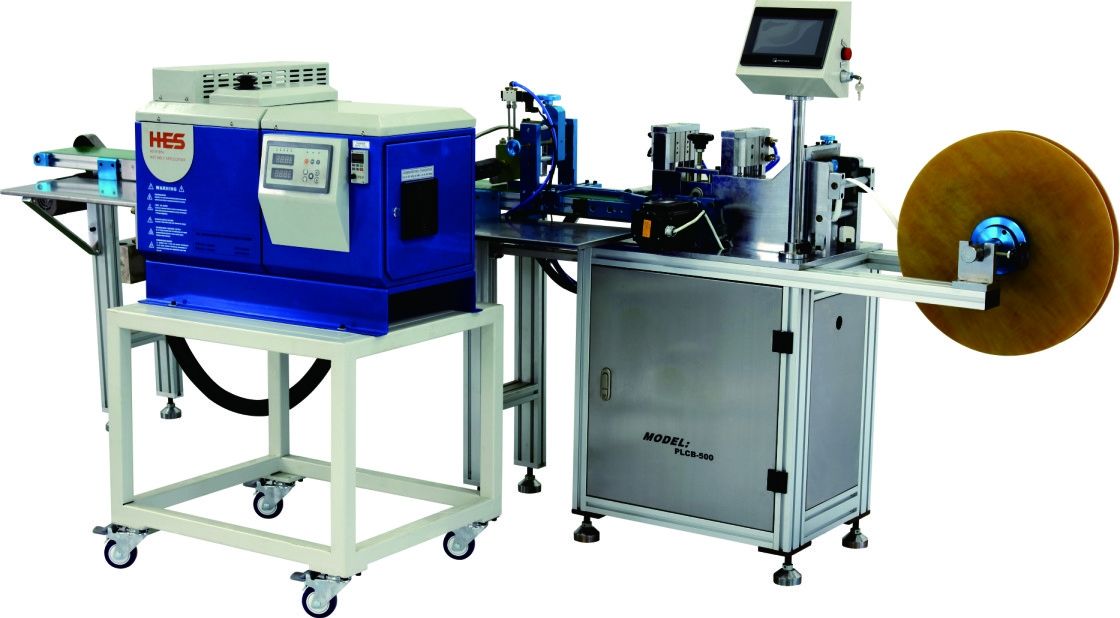

Car Cabin Air Filters Making Semi-auto Cabin Filter Bonding Machine For Edge Gluing
1, General Description

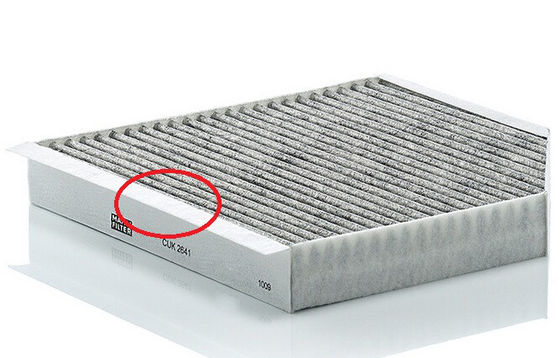

This semi-auto cabin air filter gluing machine is mainly used for folding and bonding the filter element of cabin air filter. Stick the strip non-woven cloth or paper coated with hot melt glue on both sides of the filter paper.
2, Machine Specifications
| Production capacity | 20 pieces/min |
| Capacity of hot melt adhesive machine | 10kg |
| hot melt adhesive machine heating power | 6kw |
| Power supply voltage | 380v/50Hz |
| Main engine power | 120w |
| Working pressure | 0.6mpa |
| Weight | 250kg |
| External dimension of the main machine | 3000×620×1030mm |
| Size of machine | 830×600×1400 mm(L*W*H) |
3, Machine Features
1, This cabin air filter gluing machine has edge length gluing, cutting and bonding by computer adjustment control.
2, This cabin air filter gluing machine has fast speed, both sides positioning bonding is accurate.
