RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZCB-500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 10 Pcs/min | Machine Weight: | 700kg |
|---|---|---|---|
| Machine Size: | 2660×1760×1950mm(L×W×H) | Keyword: | Car Air Filter Making Machine |
| Application: | Cabin Filter Gluing And Bonding | Adjustable Pleating Height: | 50mm |
| Service: | Engineer Available For Oveaseas Service | ||
| Highlight: | car air filter production line,air filter manufacturing equipment |
||

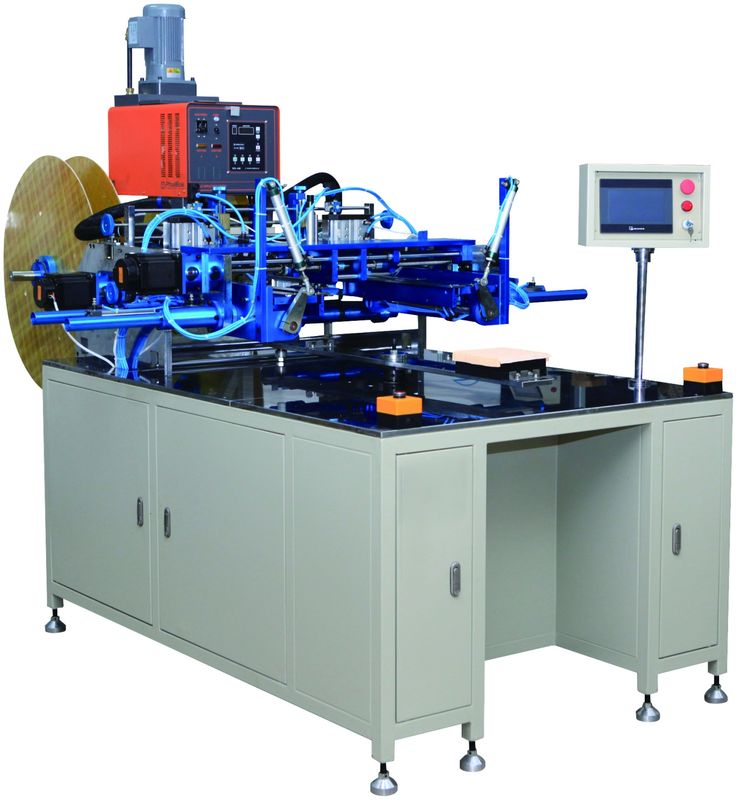

Car Cabin Air Filters Making Machine Full Auto Cabin Filter Gluing Machine For Bonding Filter Edge
1, General Description

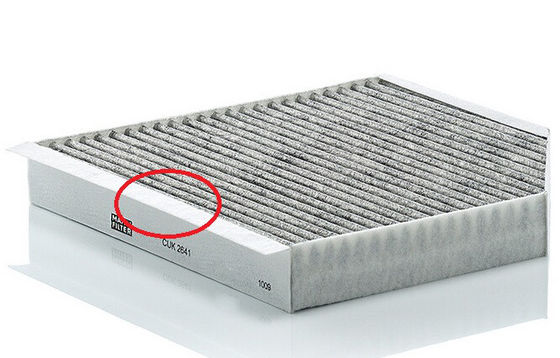

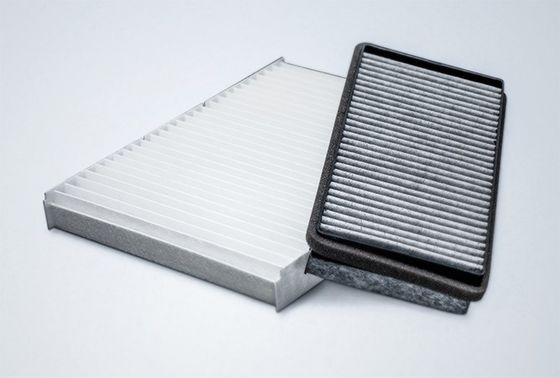

This full-auto cabin air filter gluing machine is mainly used for folding and bonding the filter element of cabin air filter. Stick the strip non-woven cloth or paper coated with hot melt glue on both sides of the filter paper.
2, Machine Specifications
| Production speed | 10pcs/min |
| Product height | 500mm |
| Product width | 400mm |
| Adjustable pleating height | 50mm |
| The output of the machine | 8kw |
| Working air pressure | 0.6Mpa |
| Power supply | 380v/50Hz |
| Main M/C dimension | 2660×1760×1950(L×W×H) |
| M/C weight |
700kg |
3, Machine Features
1, This cabin air filter gluing machine has edge length gluing, cuting and bonding by computer adjustment control.
2, This cabin air filter gluing machine has fast speed, both sides positioning bonding is accurate.
3. Automatic adjustment of product specifications.
