RILANT, Focus On Auto Industry Solution!
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZAB-6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 20 Pcs/min | Machine Weight: | 450kg |
|---|---|---|---|
| Machine Size: | 1800×1400×1700mm(L×W×H) | Application: | Car Air Filter End Cap Gluing |
| Warranty: | 1 Year | Service: | Engineer Is Available For Overseas Service |
| Highlight: | car air filter production line,air filter manufacturing equipment |
||

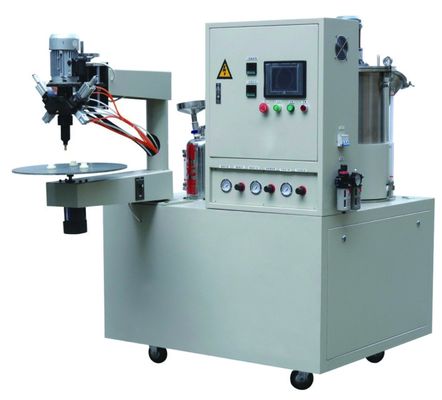

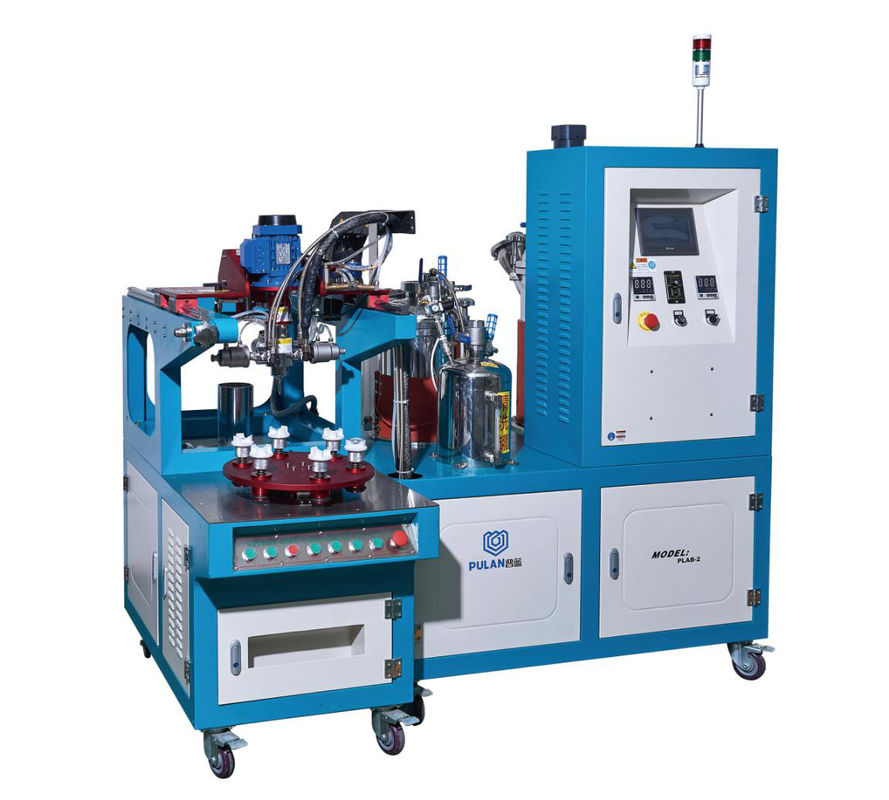

Full Auto Truck Air Filter Making Machine Full Auto End Cap Gluing Machine
1, General Description
This gluing machine is used for pouring A.B two parts on the air filter end caps.
2, Machine Specifications
| Available cap diameter | ≦Ф150mm |
| Tank capacity(A,B) | 60L,35L |
| Gluing range/single | 5g~160g |
| Gluing speed(S/time) | 3~15S/time |
| Product efficiency | 20pcs/min |
| Mixing ratio | 1:6 (or customized according to customer requirements) |
| Mixing head speed | 3300Circle/min |
| Turning speed | ≦280circle min |
| Machine power | 4kw |
| Working air pressure | 0.6Mpa |
| Power supply | 380V/50hz |
| M/C weight | 450kg |
| M/C dimension | 1800×1400×1700mm(L×W×H) |
3, Machine Features
1, The turning table speed and gluing speed can be adjusted freely according to the filter cap size. And its gluing amount is evenly and correctly.
2, This machine equips the step motor control system, which is fast speed gluing and short return time.
3, The compounded tank has the function of heat mixing, and the machine has its circulation system, to prevent the material precipitation.
4, The pipes has self temp-limited heating, to ensure the gluing amount stably.
5, The gluing head has the anti-curing alarm functions,self-test alarm functions and maintenance and repair guidance system as well.
6, Monitor and PLC control system, which is easy operation.
