| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | RTCB-500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 10 Pcs/min | Machine Weight: | 700kg |
|---|---|---|---|
| Machine Size: | 2660×1760×1950mm(L×W×H) | Application: | Cabin Filter Edge Non-woven Bonding |
| After Sales Service: | Engineers Available For Overseas Service | Condition: | New |
| Highlight: | car air filter production line,air filter manufacturing equipment |
||

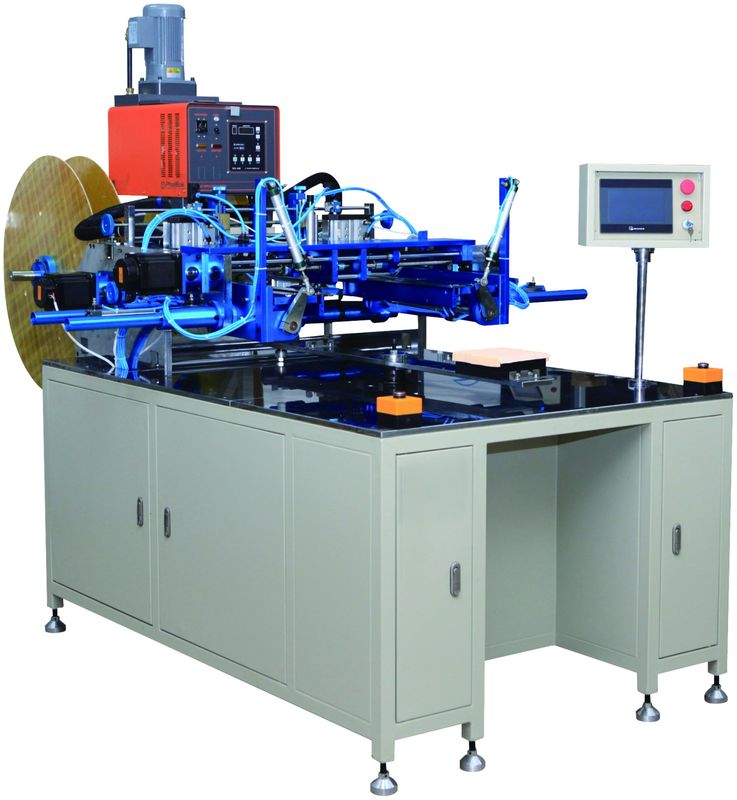

Full Auto Car Cabin Air Filter Gluing Machine Non-woven Edge Bonding Machine
1, General description

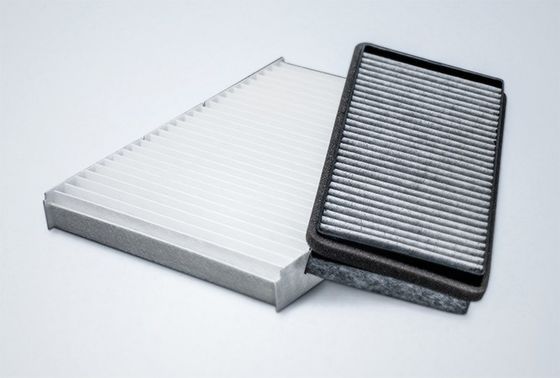

This machine is mainly used for cabin air filter core pleated, then coated with hot melt adhesive strip of non-woven cloth or paper to stick on both sides of the filter paper.
2, Machine Specifications
1, Seal speed:10pcs/min
2, Product height:500mm
3, Product width:400mm
4, Adjustable pleating height: 50mm
5, Machine motor power:8kw
6, Working air pressure:0.6Mpa
7, Power supply:380v/50Hz
8, Main M/C dimension: 2660×1760×1950(L×W×H)
9, M/C weight:700kg
3, Features
1, The machine is suitable for gluing different length filter edge, cut and paste is controlled by computer.
2, Machine gluing speed is fast, high positioning accuracy.
3, Product specifications can be adjusted.
