| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | RT-1000N |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Production Speed: | 0~30m/min | Machine Weight: | 850kg |
|---|---|---|---|
| Machine Size: | 5200×1490×1170mm(L×W×H) | Application: | Air Filter Pleating |
| Condition: | New | After Sales Service: | Engineer Available For Overseas Service |
| Max.width: | 1000mm | Temp.control: | Normal Temp.~300oC |
| Highlight: | air filter manufacturing machines,car air filter production line |
||

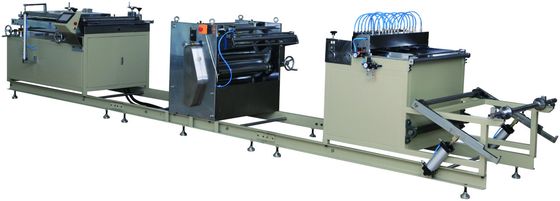

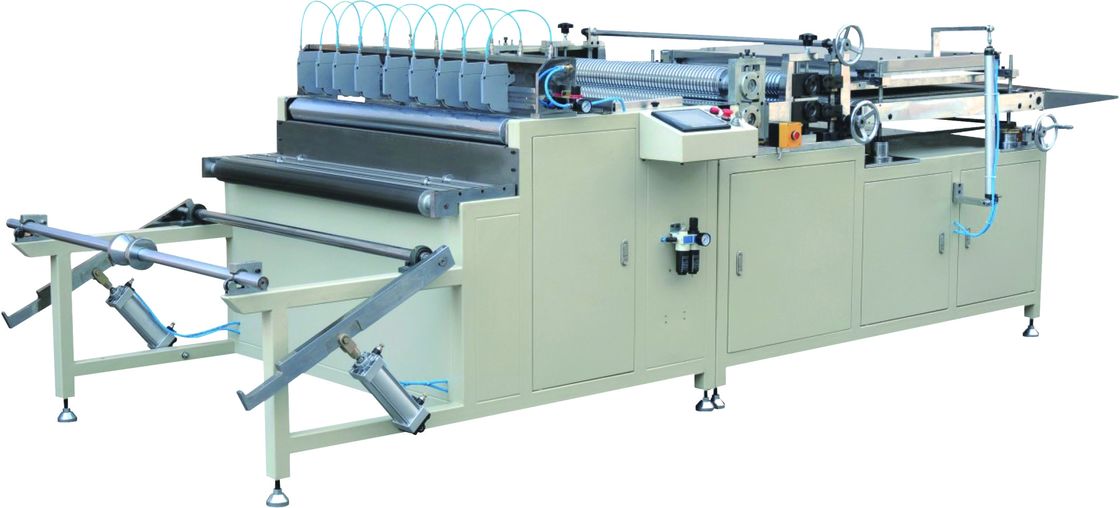

Full Auto Heavy Duty Car Air Filter Rotary Pleating Machine
1, Machine Consists
1, Auto paper de-coiler
2, Paper Pre-slitting machine
3, Pre-heating device before pleating
4, Auto counter
5, Water steam device
6, The specification of the drum can be changed arbitrarily
7, Roller and gear collecting device
8, Pleated paper heat forming and conveyor device
2, Machine Specifications
| 1 | Product capability | 0~30m/min |
| 2 | Max.width | 1000mm |
| 3 | Min.width | 100mm |
| 4 | Max.pleat height | 70mm |
| 5 | Min.pleat height | 10mm |
| 6 | Rollers sizes | Customized |
| 7 | Temp.control | normal temp.~200oC |
| 8 | Main power | 24kw |
| 9 | Working air pressure | 0.6MPa |
| 10 | Power supply | 380V/50Hz |
| 11 | M/C weight | 850kg |
| 12 | M/C dimension | 5200×1490×1170mm(L×W×H) |
3, Features
1, The pre-slitter uses a pneumatic cutting round knife, which is adjusted simply and pressed evenly.
2, This machine equips the pre-heating and water steam device, to prevent the paper breaking when roller marking.
3, This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
4, This high automatic machine has the process of the auto count marking, pleating,pre-heating and forming.
5, This machine is computer control and simple operation.
