RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | SZ-D650 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Size: | 3000*1150*1700mm(L*W*H) | Color: | Customized |
|---|---|---|---|
| Application: | Deburring Die Casting Burrs | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | One Year |
| Product Name: | Robotic Deburring Machine For Aluminum Kitchen Ware Burrs Removing Metal Deburring Machine | ||
| Highlight: | 6KW Robotic Deburring Machine,CE Robotic Deburring Machine,Robotic Metal Deburring Machine |
||

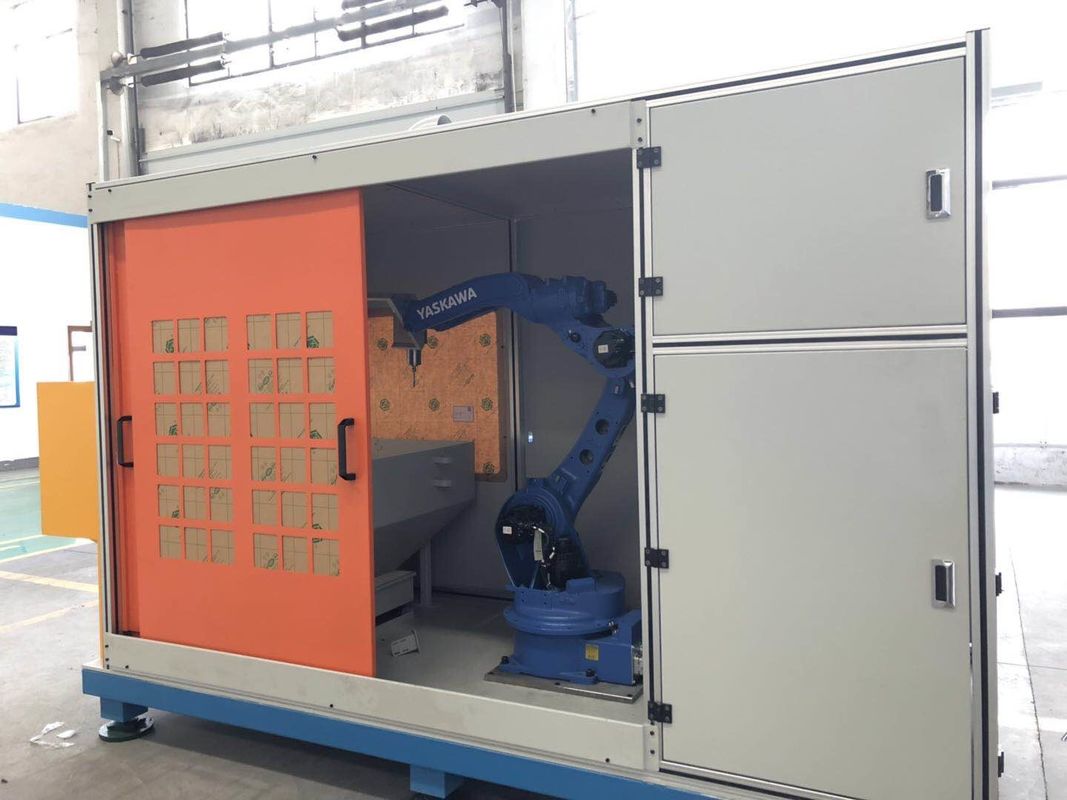

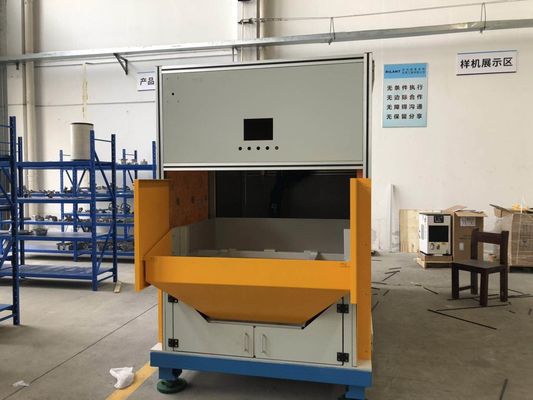

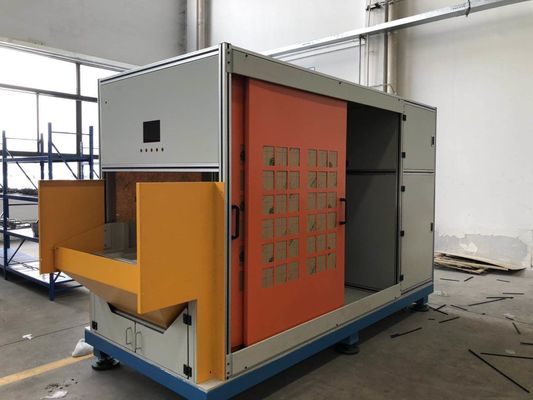

Robotic Deburring Machine For Aluminum Kitchen Ware Burrs Removing Metal Deburring Machine
1, General description

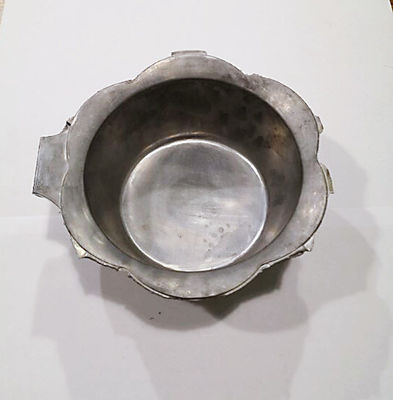

The robotic deburring machine is mainly used for deburring the burrs on the die casting surface.
2, Machine Specifications
(1) 2 station splitter speed: 60 / min (speed adjustable)
(2) 2 station splitter drive mode: 1.1KW geared motor (1:50 speed ratio)
(3) Flip axis angle: 0°-360° (angle can be flipped freely)
(4) Flip axis speed: 90r/min (maximum speed)
(5) Flip axis accuracy: repeat positioning accuracy ± 4 (arc.sec)
(6) Grinding head maximum speed: 18000 / min
(7) Grinding head drive mode: electric drive
(8) Machine power: 6KW
(9) Power supply: three-phase 380V/50HZ
(10) Gas source: three-phase 380V/50HZ
(11) Equipment size: 3470mm × 1500mm × 2050mm
(12) Equipment weight: 2900kg
3, Features
This auto deburring robot can remove the burrs easily, it is fully automatic, save labor cost.
With simple operation and fast speed.
