RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | RTD-3-6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Size: | 3000*1150*1700mm(L*W*H) | Color: | Customized |
|---|---|---|---|
| Application: | Deburring Die Casting | After Sales Service Provided: | Engineer Available To Service Machinery Overseas |
| Condition: | New | Warranty: | 1 Year |
| Product Name: | Deburring Machine With FANUC Robot | ||
| Highlight: | automatic deburring machine,metal deburring machine |
||

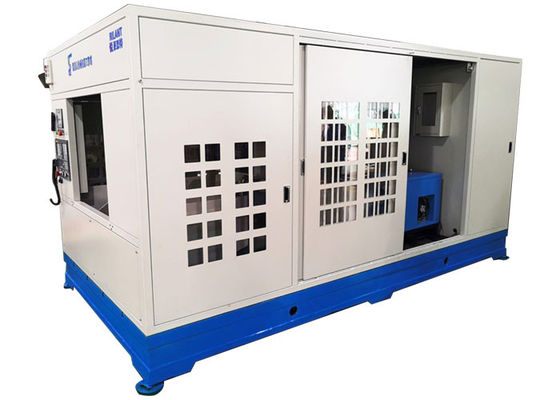

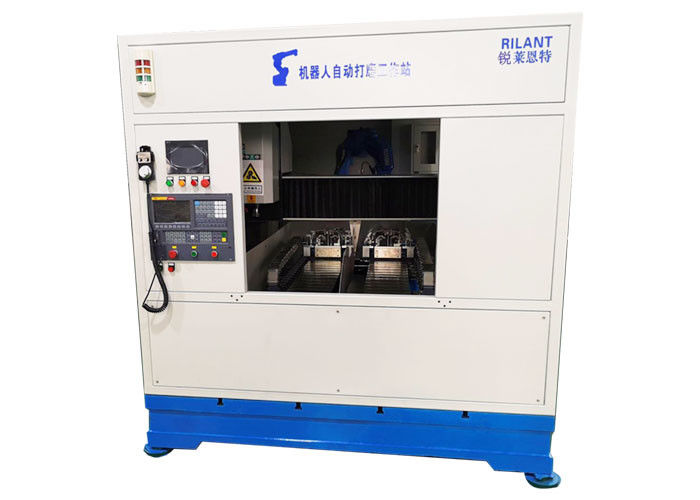

Robotic Deburring Machine Double Sliding Table Multi-functional Deburring Robot
1, General description

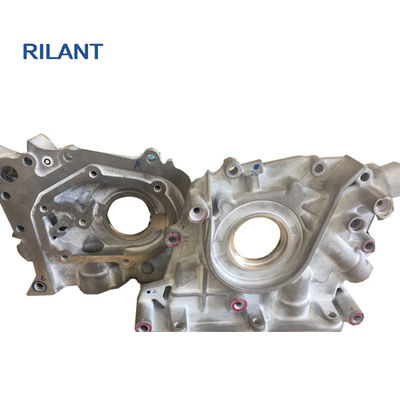

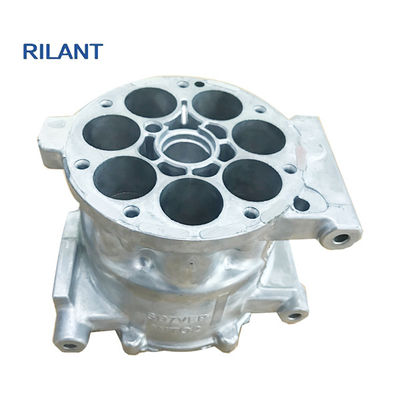

The robotic deburring machine is mainly used for deburring the burrs on the die casting surface.
2, Machine Specifications
(1) XYZ axis travel: 1000/1200/200mm
(2) Maximum extrusion speed of XYZ axis: 80cm/sec
(3) XYZ axis drive mode: AC servo
(4) Maximum spindle speed: 24000r/min
(5) Spindle accuracy: shaft diameter jumps 2μm, the check rod is 4μm from the end of the shaft
(6) Double slide travel: 1200mm
(7) Double slide accuracy: repeat displacement accuracy ±0.5μ
(8) Double slide drive mode: AC servo
(9) Grinding head maximum speed: 18000 / min
(10) Grinding head drive mode: electric drive
(11) Machine power: 7KW
(12) Power supply: three-phase 380V/50HZ
(13) Gas source: 0.5-0.9 (MPa)
(14) Equipment size: 4000mm × 1900mm × 2000mm
(15) Equipment weight: 5200kg
3, Features
This auto deburring robot can remove the burrs easily, it is fully automatic, save labor cost.
With simple operation and fast speed.
4, Our Service
5, Package And Delivery
6, FAQ
