One Station Hydraulic Stretching Machine For Filter Housings Punching Line

One Station Hydraulic Stretching Machine For Filter Housings Punching Line

1, General description

The automatic production line is mainly used for making small filter housing. Five steps: (1) punch round piece (2) first stretching (3)second stretching (4) third stretching (5) trimming.

2, Machine Specifications

1. General speaking: this machine includes 4 sets of hydraulic system units and 1 set of auto-feeding system, each workstation is connected by the mechanical hands to achieve the automation of material feeding and the 4 stations working.

2. Auto-feeding system

   The Max. diameter of round steel piece: Ф420 mm

   Thickness of round steel piece: 0.5~1 mm

The Max. height of round steel pieces stack: 300 mm

3. The pressure of 4 main-hydraulic cylinders: 500 kN, 300 kN, 300 kN, 300/500 kN

4. The pressure of 4 down-hydraulic cylinders: 200 kN, 100 kN, 100 kN, 60 kN

5. The Max. work-length of moving transom: 800 mm

6. The Max. obturating height: 1550 mm

7. The Max. work-length of 4 down-hydraulic cylinders: 280 mm, 350 mm, 350 mm, 380 mm

8. Motor power: 0.75 kW + 4 ×15 kW

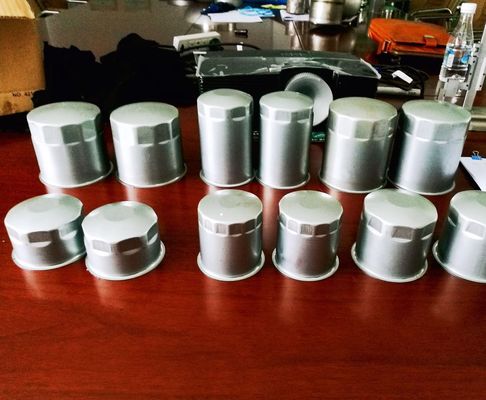

9. The Max. dimension of housing product: Ф136 mm x H 310 mm

10. Air pressure: 0.5 ~ 0.85 Mpa   Air flow rate: ≧ 1300 L/min

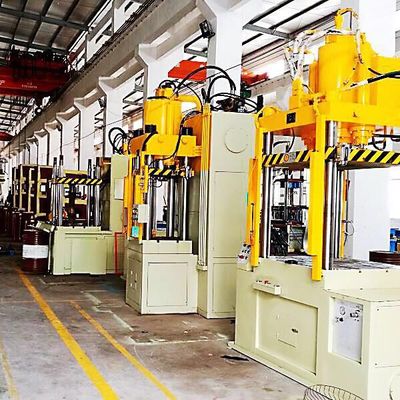

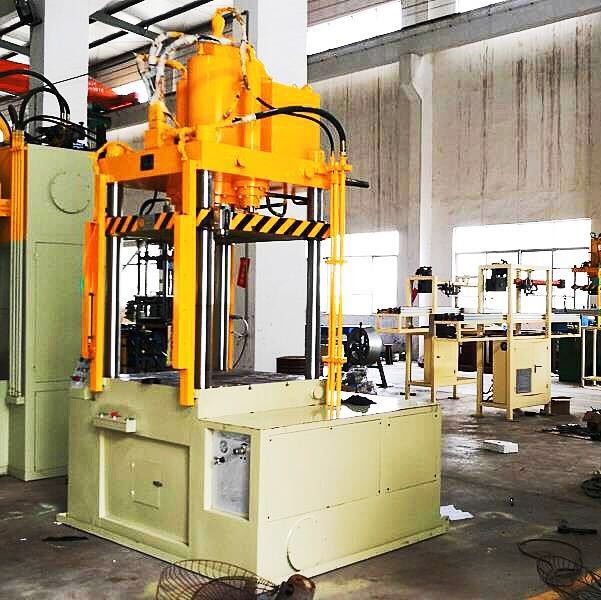

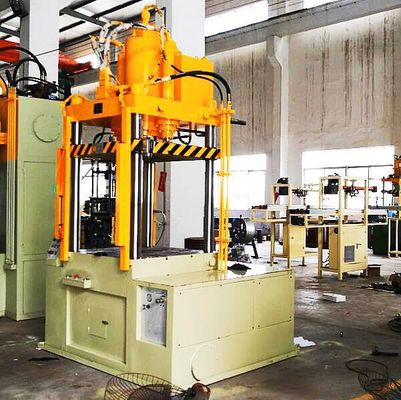

3, Machine picture

Y28B series filter housing special hydraulic stretching machine is our company's special requirements in the filter industry, based on the principle of high efficiency, high precision, carefully developed professional equipment. It is mainly used for the deep drawing process of the filter casing, and it is fully automatic with the special combined mold to realize the material discharge, feeding, punching and shearing, secondary stretching and punching and shaping. It can also be used for stretching and pressing of metal products in the hardware industry. After being used by many large-scale filter factories at home and abroad, the series of hydraulic stretching machines have the following characteristics:
Low power, high efficiency, low noise: oil is supplied by double high pressure vane pump;
1, Safe and reliable: Adopt NA series light curtain sensor protection device and overload protection device;
2, Control is sensitive and accurate: the electrical system uses a non-contact switch, PLC programmable controller;
3, The sealing performance is good: the main seals are made of NOK and Sida products;
4, Excellent performance, stable and reliable.
