RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | Y28B-50-30-30-30/50 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Weight: | 35T | Air Pressure: | 0.5 Mpa |
|---|---|---|---|
| Material: | Stainless Steel, Aluminum Etc | Application: | Filter Housing Punching Line |
| Keyword: | Filter Housing Stretching Machine | Service: | Engineer Available For Overseas Service |
| Highlight: | metal stretching machine,stretch bending machine |
||

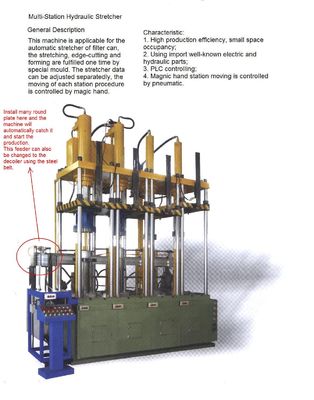

Multi Station Hydraulic Stretching Machine For Filter Housings Making
1, General description
The automatic production line is mainly used for making small filter housing. Five steps: (1) punch round piece (2) first stretching (3)second stretching (4) third stretching (5) trimming.
2, Machine Specifications
1. General speaking: this machine includes 4 sets of hydraulic system units and 1 set of auto-feeding system, each workstation is connected by the mechanical hands to achieve the automation of material feeding and the 4 stations working.
2. Auto-feeding system
The Max. diameter of round steel piece: Ф420 mm
Thickness of round steel piece: 0.5~1 mm
The Max. height of round steel pieces stack: 300 mm
3. The pressure of 4 main-hydraulic cylinders: 500 kN, 300 kN, 300 kN, 300/500 kN
4. The pressure of 4 down-hydraulic cylinders: 200 kN, 100 kN, 100 kN, 60 kN
5. The Max. work-length of moving transom: 800 mm
6. The Max. obturating height: 1550 mm
7. The Max. work-length of 4 down-hydraulic cylinders: 280 mm, 350 mm, 350 mm, 380 mm
8. Motor power: 0.75 kW + 4 ×15 kW

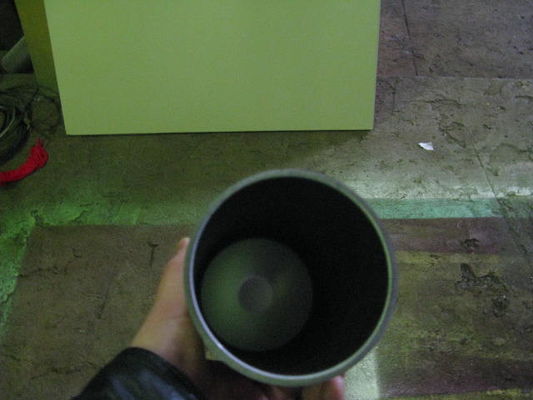

9. The Max. dimension of housing product: Ф136 mm x H 310 mm
10. Air pressure: 0.5 ~ 0.85 Mpa
Air flow rate: ≧ 1300 L/min

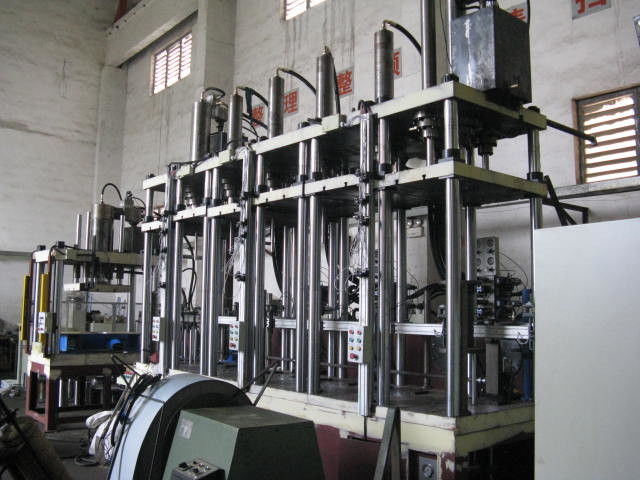

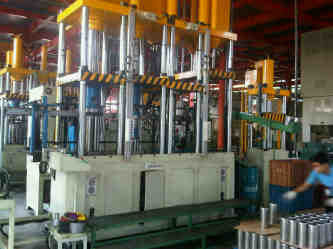

3, Machine picture
4, Our Service
5, Package And Delivery
6, FAQ
