RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | RTR-6000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Size: | About 12000*3500*3000mm(L*W*H) | Color: | Customized |
|---|---|---|---|
| Application: | Rockwool Production | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | One Year | Condition: | New |
| Highlight: | sandwich panel machine line,mineral wool sandwich panel production line |
||

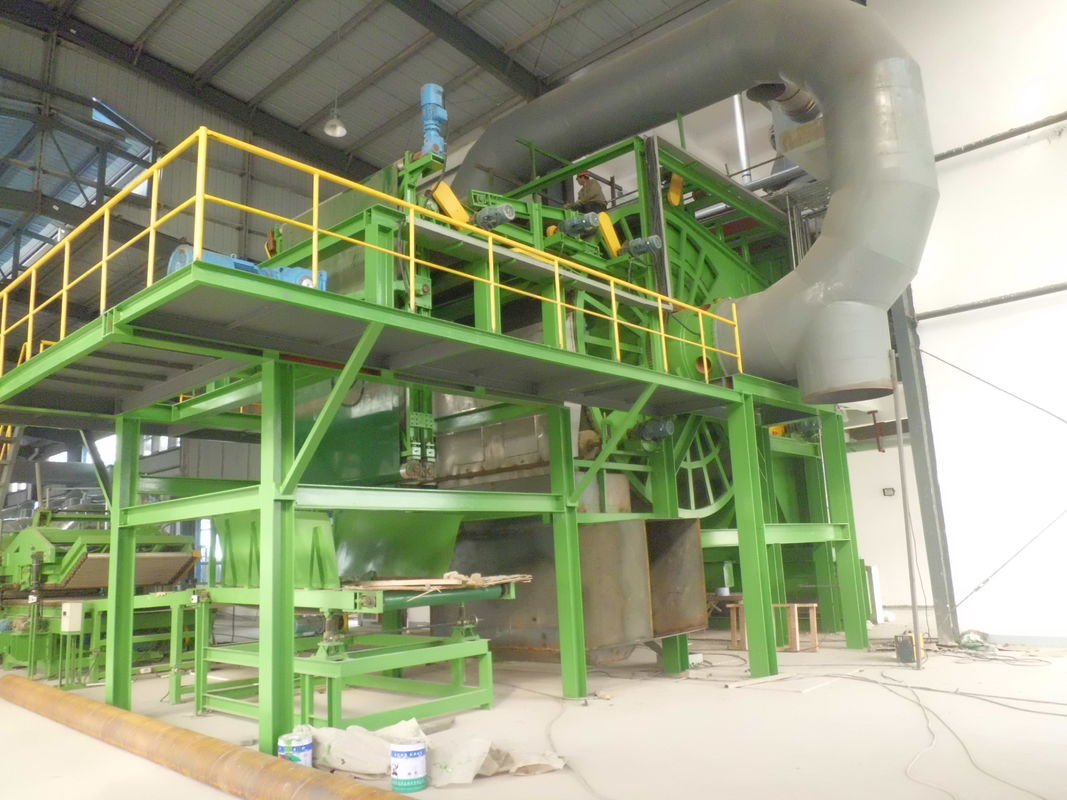

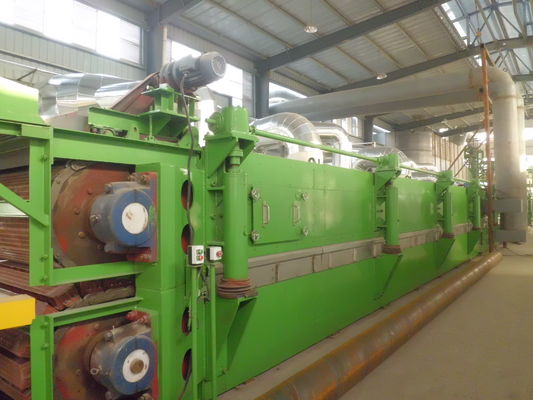

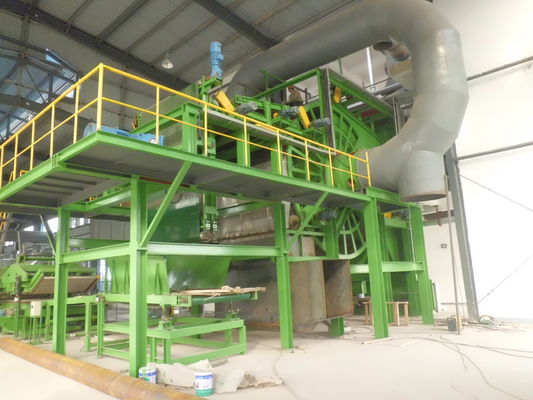

Rockwool Production Line Continuous Sandwich Panel Production Line
1, General description

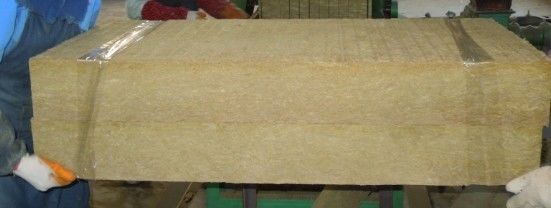

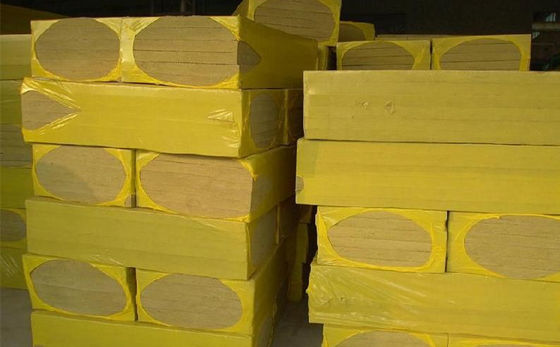

This rockwool production line is used for making rock wool.
2, Machine Specifications
(1) Plant Size: 80x16x6m (LxWxH)
The width is for two production line.
The basic drawings will be supplied after the signature of contract.
(2) Power Supply: AC380V±5％ 50Hz
(based on different country standard)
(3) Heating Way: natural gas / fuel oil / coal / electrical /
liquefying gas (based on customer requirement)
(4) Air Supply: 0.5 m³/min
(5) Water Treatment: clean water
(6) Humidity: ≥90％ Temperature: -10～45℃
Technical Description
(1) Raw Material: superfine glass fiber cotton
(2) Production Output: 18000m2/day
(3) Slurry Concentration: ~0.3
(4) Paper Machine Running Speed: 3-18m/min, frequency adjustable
(5) Product Width: 1200mm
(6) Tolerance of Oven Outside-Wall Temperature and Room Temperature: 10℃ (inlet & outlet door and window not included)
(7) Air Pressure: 0.5 m³/min
(8) Hot Wind Circling Time: 8-11times/min.
(9) Product Moisture: ≤1%
(10) Burning Gas: ＜600000kilocalorie/min., about 50m3/h
(11) Whole Line Power: ~190KW
(12) Heating Temperature: 100~280℃
| NO. | NAME | SPECIFICATION & MODEL | UNIT | QTY. | REMARK |
| 1 | Beating Machine | 4m³ | units | 2 | |
| Thickness of tank: δ6mm；Material: stainless steel 316 plate | sets | 2 | |||
| Diameter of beating axis: Ф90；Material: stainless steel 316 | sets | 2 | |||
| Beater Material: stainless steel 316 | sets | 2 | |||
| Motor: (GB) 30KW | units | 2 | Shanghai Lichao | ||
| ☆Note: the motor is installed vertically at topside, driven by belt wheel, (GB) 30KW | |||||
| Bottom exhausting pipe diameter 108, stainless steel, tank top is PVC cover. | |||||
| 2 | Mixing Machine | units | 3 | ||
| Mixing axis: φ76*5, stainless steel 316L | units | 3 | |||
| Speed Reducer | units | 3 | Guomao Speed Reducer | ||
| ☆Note: mixing axis with blade length 50cm, thickness 10mm, material: stainless steel 316L | |||||
| Speed reducer with standard frame. | |||||
| Motor power: 5.5KW-2 units, 7.5KW-1unit, the U-steel frame at top of stock trough is not included. | |||||

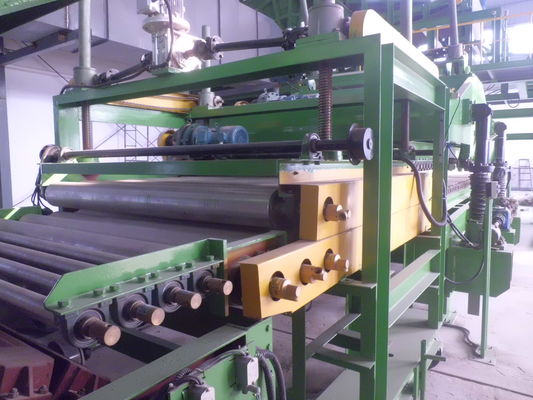

| 3 | Forming machine | 6000*1800*1300 | unit | 1 | Stainless steel |
| all kinds of glue hose | sets | 22 | 5.5KW frequency speed adjusting | ||
| Pressing, tensing, rectifying | set/ each | 1 | |||
| Vacuum, absorption of moisture | set/ each | 1 | stainless | ||
| Polyester mesh | set | 1 | |||
| Frame | Set | 1 | stainless | ||
| 4 | Gluing Machine | 4500*1800*1300 | unit | 1 | |
| Frame | set | 1 | |||
| Tensing and rectifying | set/each | 1 | |||
| Composite table | set | 2 | |||
3, Features
4, Our Service
5, Package And Delivery
6, FAQ
