RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | CE |
| Model Number: | RTG-3000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Machine Size: | About 12000*3500*3000mm(L*W*H) | Color: | Customized |
|---|---|---|---|
| Application: | Glass Wool Production | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | One Year | Condition: | New |
| Min Order: | 1 Set | ||
| Highlight: | sandwich panel machine line,continuous sandwich panel line |
||

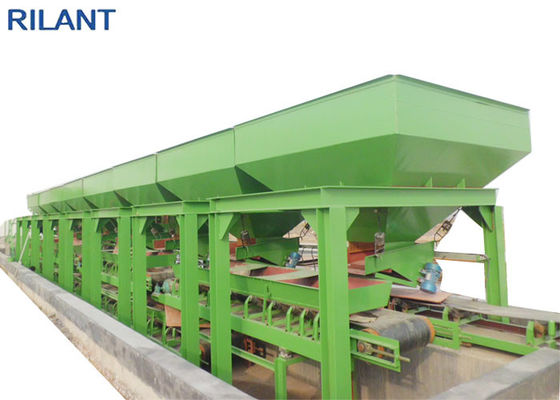

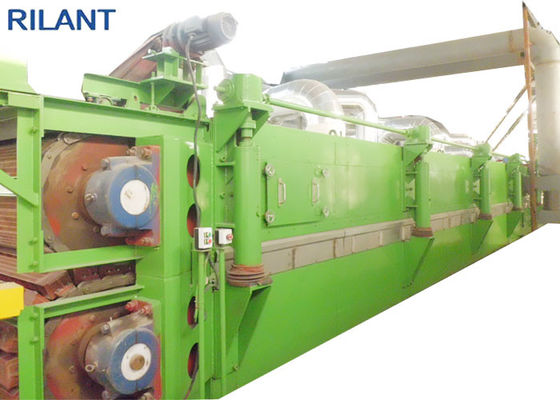

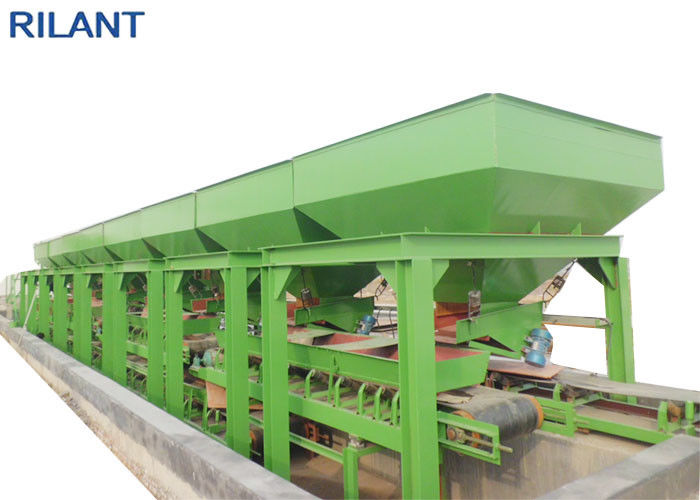

Glass Wool Production Line Sandwich Panel Production Line Glass Fiber Plate Making
1, General description

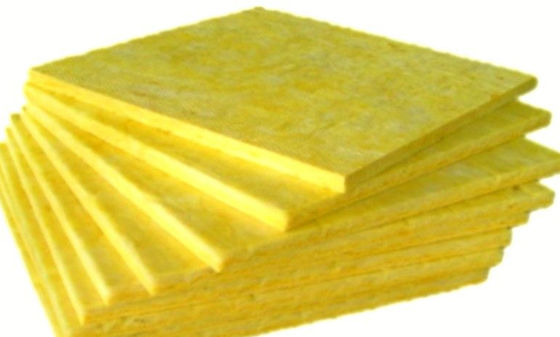

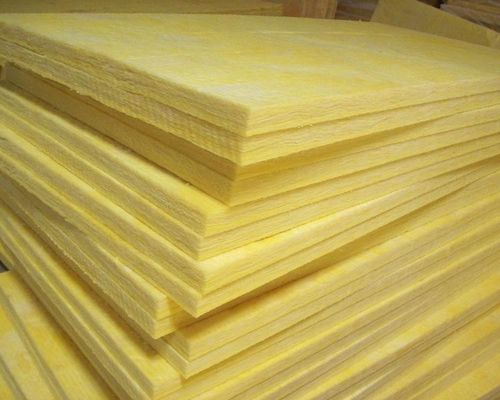

This glass wool production line is used for making glass fiber composite plate.
2, Machine Specifications
(1) Plant Size: 80x16x6m (LxWxH)
The width is for two production line.
The basic drawings will be supplied after the signature of contract.
(2) Power Supply: AC380V±5％ 50Hz
(based on different country standard)
(3) Heating Way: natural gas / fuel oil / coal / electrical /
liquefying gas (based on customer requirement)
(4) Air Supply: 0.5 m³/min
(5) Water Treatment: clean water
(6) Humidity: ≥90％ Temperature: -10～45℃
Technical Description
(1) Raw Material: superfine glass fiber cotton
(2) Production Output: 18000m2/day
(3) Slurry Concentration: ~0.3
(4) Paper Machine Running Speed: 3-18m/min, frequency adjustable
(5) Product Width: 1200mm
(6) Tolerance of Oven Outside-Wall Temperature and Room Temperature: 10℃ (inlet & outlet door and window not included)
(7) Air Pressure: 0.5 m³/min
(8) Hot Wind Circling Time: 8-11times/min.
(9) Product Moisture: ≤1%
(10) Burning Gas: ＜600000kilocalorie/min., about 50m3/h
(11) Whole Line Power: ~190KW
(12) Heating Temperature: 100~280℃
| NO. | NAME | SPECIFICATION & MODEL | UNIT | QTY. | REMARK |
| 1 | Beating Machine | 4m³ | units | 2 | |
| Thickness of tank: δ6mm；Material: stainless steel 316 plate | sets | 2 | |||
| Diameter of beating axis: Ф90；Material: stainless steel 316 | sets | 2 | |||
| Beater Material: stainless steel 316 | sets | 2 | |||
| Motor: (GB) 30KW | units | 2 | Shanghai Lichao | ||
| ☆Note: the motor is installed vertically at topside, driven by belt wheel, (GB) 30KW | |||||
| Bottom exhausting pipe diameter 108, stainless steel, tank top is PVC cover. | |||||
| 2 | Mixing Machine | units | 3 | ||
| Mixing axis: φ76*5, stainless steel 316L | units | 3 | |||
| Speed Reducer | units | 3 | Guomao Speed Reducer | ||
| ☆Note: mixing axis with blade length 50cm, thickness 10mm, material: stainless steel 316L | |||||
| Speed reducer with standard frame. | |||||
| Motor power: 5.5KW-2 units, 7.5KW-1unit, the U-steel frame at top of stock trough is not included. | |||||
| 3 | Forming machine | 6000*1800*1300 | unit | 1 | Stainless steel |
| all kinds of glue hose | sets | 22 | 5.5KW frequency speed adjusting | ||
| Pressing, tensing, rectifying | set/ each | 1 | |||
| Vacuum, absorption of moisture | set/ each | 1 | stainless | ||
| Polyester mesh | set | 1 | |||
| Frame | Set | 1 | stainless | ||
| 4 | Gluing Machine | 4500*1800*1300 | unit | 1 | |
| Frame | set | 1 | |||
| Tensing and rectifying | set/each | 1 | |||
| Composite table | set | 2 | |||
3, Features
4, Our Service
5, Package And Delivery
6, FAQ
