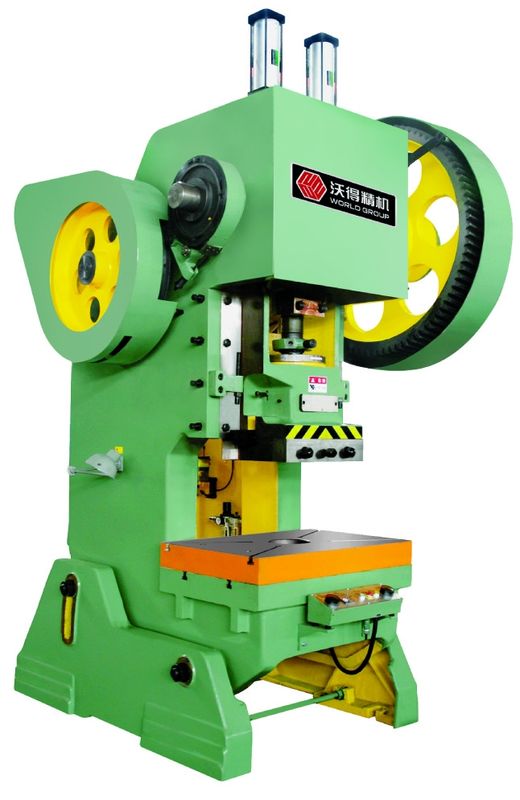

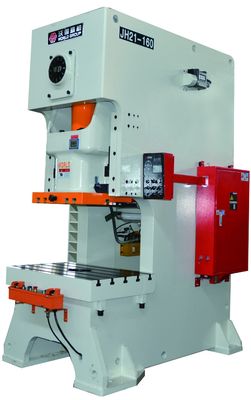

Metal Stamping Press Machine J23 Series C-frame Inclinable Press Metal Stamping Process
1, General Description
J23 series C-frame inclinable press has very stable performance, high quality and efficiency.
60 years’ production experience made this machine have high reputation all over the world.
2, Machine Specifications
| Parameter | Code | Unit | J23-6.3 | J23-10 | J23-16 | J23-25 | J23-35 | J23-40 | J23-63 | JB23-63 | J23-80 | J23-100 | J23-125 | |
| Nominal Capacity | Pe | KN | 63 | 100 | 160 | 250 | 350 | 400 | 630 | 630 | 800 | 1000 | 1250 | |
| Nominal Stroke | Sp | mm | 2 | 2 | 2 | 2.5 | 3.5 | 6 | 6 | 7 | 7 | 7 | 8 | |
| Slide Stroke | S | mm | 35 | 45 | 55 | 65 | 80 | 90 | 110 | 110 | 120 | 140 | 150 | |
| Slide Stroke Per Minute | n | T/M | 170 | 145 | 125 | 55 | 50 | 45 | 50 | 40 | 38 | 38 | 38 | |
| Maximum Die Set Height | H2 | mm | 150 | 180 | 220 | 270 | 290 | 320 | 360 | 390 | 440 | 480 | 500 | |
| Die Height Adjustment | t | mm | 30 | 35 | 45 | 55 | 60 | 65 | 80 | 80 | 90 | 100 | 100 | |
| Throat Depth | C1 | mm | 110 | 130 | 160 | 200 | 220 | 250 | 260 | 310 | 350 | 380 | 390 | |
| Distance Between Uprights | d | mm | 150 | 180 | 220 | 270 | 280 | 340 | 350 | 420 | 450 | 560 | 550 | |
|
Slide Bottom Size |
L x R | a | mm | 140 | 170 | 200 | 250 | 250 | 300 | 300 | 400 | 430 | 540 | 540 |
| F x B | b | mm | 120 | 150 | 180 | 220 | 220 | 260 | 260 | 360 | 360 | 480 | 480 | |
| Stem hole Size | Dia | d | mm | 30 | 30 | 40 | 40 | 40 | 50 | 50 | 50 | 60 | 60 | 60 |
| Depth | I | mm | 55 | 55 | 60 | 60 | 60 | 70 | 70 | 70 | 75 | 75 | 75 | |
| Bolster Size | L x R | C | mm | 310 | 370 | 450 | 560 | 610 | 700 | 760 | 860 | 950 | 1080 | 1100 |
| F x B | D | mm | 200 | 240 | 300 | 370 | 400 | 460 | 480 | 570 | 650 | 710 | 720 | |
| Diameter of Blanking Hole | Φ | mm | 60 | 80 | 100 | 120 | 130 | 150 | 180 | 180 | 200 | 220 | 240 | |
| Bolster Thickness | H3 | mm | 30 | 35 | 40 | 50 | 60 | 65 | 80 | 80 | 100 | 120 | 130 | |
| Max Angle of Inclination | α | 45 | 35 | 35 | 30 | 30 | 30 | 20 | 20 | 20 | 15 | 13 | ||
| Bolster Surface Height | H1 | mm | 750 | 730 | 750 | 800 | 815 | 850 | 810 | 850 | 850 | 850 | 860 | |
|
Overall Size |
F x B | A | mm | 780 | 900 | 1150 | 1345 | 1460 | 1721 | 1810 | 1958 | 2060 | 2404 | 2504 |
| L x R | B | mm | 620 | 665 | 847 | 950 | 1058 | 1335 | 1350 | 1500 | 1715 | 1790 | 1790 | |
| H | H | mm | 1503 | 1658 | 1910 | 2130 | 2225 | 2488 | 2740 | 2868 | 3290 | 3625 | 3715 | |
| Distance between foundation bolts | F x B | a’ | mm | 530 | 610 | 780 | 920 | 1020 | 1060 | 1180 | 1300 | 1360 | 1550 | 1710 |
| L x R | b | mm | 314 | 394 | 450 | 600 | 650 | 750 | 850 | 920 | 1010 | 1130 | 1110 | |
| Motor Power | Kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | ||
| Weight | Kg | 400 | 576 | 1085 | 1780 | 2650 | 3540 | 4550 | 5500 | 7390 | 10800 | 12035 | ||
1, Adopt a rotating key positive clutch, which is easy to operate and convenient to maintain.
2, J23-25T adopts rolling bearing instead of sliding bearing (copper-bearing) and this makes the transmission gear more wear-resistant and avoids loud noise of gears caused by copper bearing abrasion.
3, J23-35T machine body is much heavier than theirs with the rolling bearing transmission (lower noise), which almost equal to the light J23-40T presses.
4, J23-80T and above press machines adopt pneumatic double balance cylinder, which decreased the balancing force fluctuate, and balanced the weight of slider and die, prevent the unstable situation. Besides, it also avoids the clash and noise caused by the gear reverse force during transmission; eliminate the clearance between connecting rod and slide; reduce the compact force and abrasion of stress components, and avoid the accident caused by falling slider when brake or connecting rod brake.
