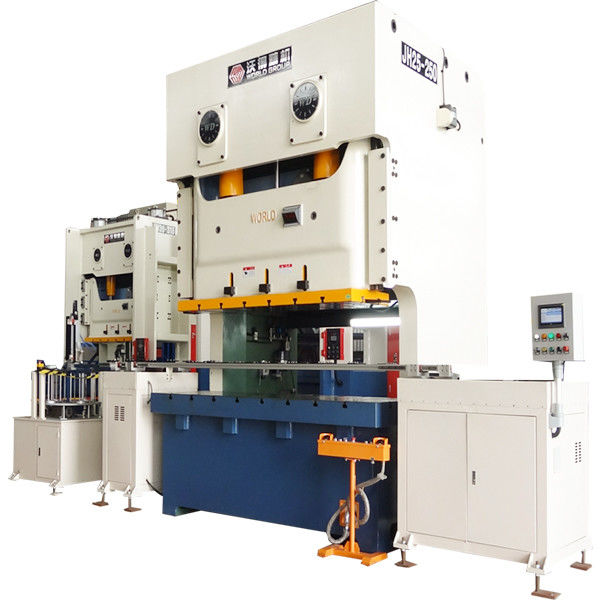

Auto Filter Housing Press Production Line For Punching Filter End Cover
1, General description
The automatic production line is mainly used for making small filter housing. Five steps: (1) punch round piece (2) first stretching (3)second stretching (4) third stretching (5) trimming.
2, Machine Specifications

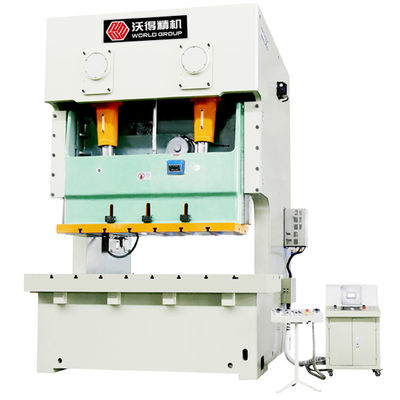

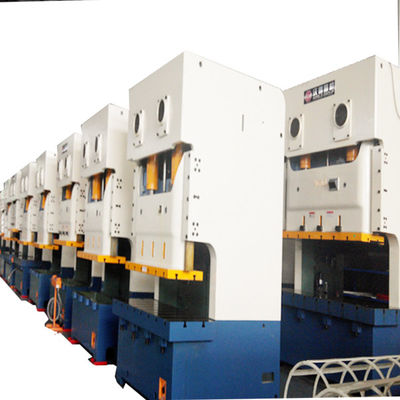

1, JH25-250T TWO POINT PRESS
2. KD-500-200-2 QUADRATIC TRANSFER HAND
(1) Driving source: 1.8 KW, Yaskawa AC servo drive device (1 group)
(2) Transfer trip (X axis):350 mm
(3) Clamping drive source: 1.8 KW, Yaskawa AC servo drive device (2 groups)
(4) Open clamp stroke (Y direction) : 180 mm (unilateral)
(5) Transfer, open clip way: screw, slippery course sliding block
(6) Main electric circuit (1): multiaxial servo motion controller (MP2300S - E)
(7) Main electric circuit (2): AC servo control system
(8) Main electric circuit (3): Mitsubishi PLC control system
(9) Material measure: approach switch
(10) Control mode: the man-machine interface display screen
(11) Connection mode: press angle corresponding to the servo control device
(12) Feed lever and press desk height: 300 mm
(13) Station number: 6
(14) Stroke time: 20 ~30 times/minute
(15) Transfer hand section: 75 x75mm
(16) Clamping mode: can choose lifting type or translation model
(17) Clamping station number: 8
(18) Work total power: 380 v + 10%, 5.5 KW
(19) Working pressure: 5 kg/cm2
3. NC-RF-600/30 AUTO DECOILER & FEEDER
(1) Form: swing servo feeder 5/ 10
(2) Feeding width: Max. 600 mm
(3) Steel material thickness:0.4 ~ 0.7 mm
(4) Steel raw material ID: Φ450~530mm
(5) Steel raw material OD: Φ1200 mm
(6) Raw material weight: Max. 2000 kg
(7) Swing (left & right) range: Max. 300 mm
(8) Feeding tolerance: 0.1 mm
(9) Equipped with two auto de-coilers which can move left & right.

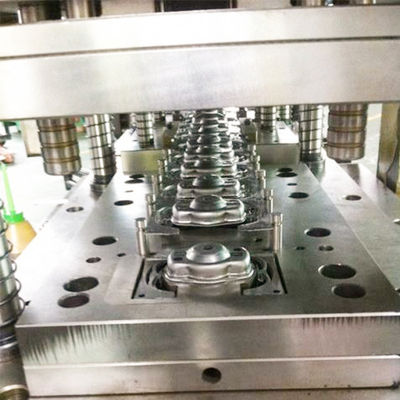

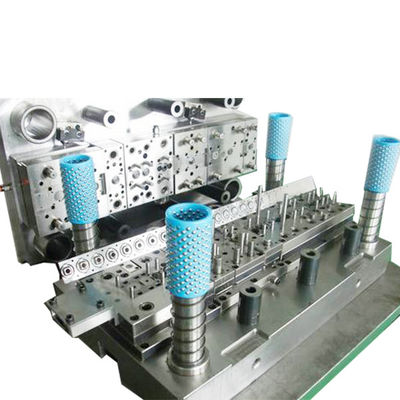

4. FILTER HOUSING PUNCHING & STRETCHING MOULD
(1) Round steel piece cutting mould, trimming mould: material Cr12MVO, hardness HRC58-61 ℃ after heat
treatment.
(2) Stretching mould: material Cr12MVO YG8.
(3) Mould frame: material 45 # steel.
3, Features
1, This auto filter housing press line can make the filter end cap automatically, with simple operation and fast speed.
4, Our Service
5, Package And Delivery
6, FAQ
