0.5 - 0.6MPA Air Filter Manufacturing Machines , Round Curing Table Pu Foam Manufacturing Machine

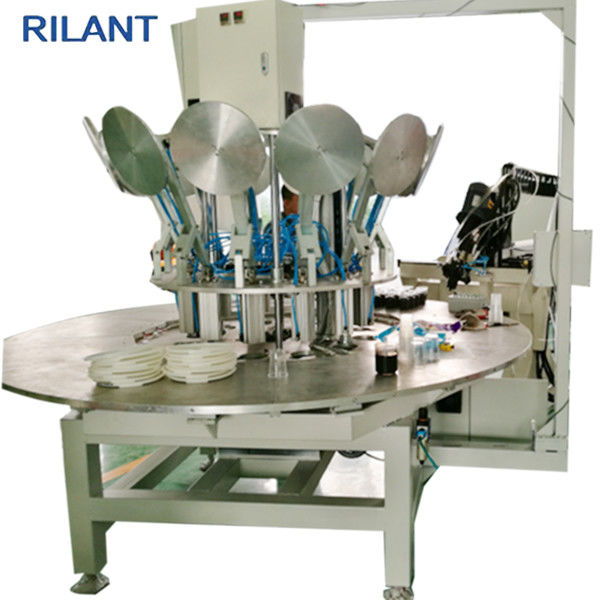

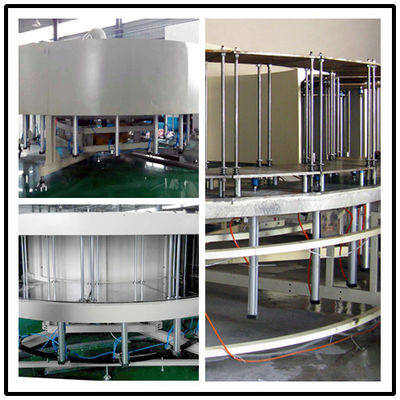

PU Filter Making Machine PU Round Curing Table

1, General Description

This air filter PU curing table is used to produce all kinds of filter core products, such as square air filtration, round air filter and special air filter.

2, Machine Specifications

1, Equipment size: disc diameter 3.2m, the total height 1420mm, 12 stations

2, Running speed: 0 ~ 15min / r; (variable frequency adjustable)

3, Working pressure: 0.5-0.6(MPA)

4, Machine power

       Driving power 1.51KW；

       Frequency converter: SF-HRCA2.2KW(Mitsubishi)

       Heating power 4.5KW

5, Heating Temperature: room Temp.-80℃(adjustable)

6, Pneumatic components

3, Machine Features

1, Worktable size and the number of stations can be customized to meet the production requirements.

2, Worktable runs smoothly, adjustable frequency, to achieve different product needs to run the speed adjustment, to achieve the best results

3, Hot air circulation system: the configuration of the electric heating tube to the air heating, the fan makes hot air into the assembly line, the design of a reasonable cycle of the air duct can be heated to recover the air, greatly reducing energy consumption

4, Temperature control: set multi-point temperature sensor in the curing oven, temperature real-time monitoring in the curing oven, control the hot air circulation system according to the real-time temperature display, making the temperature more uniform.

5, Mold through the cylinder control system to achieve the automatic opening and closing work, a high degree of automation.

6, Designed a sufficient height of the mold display space, to achieve a small footprint, to meet the needs of production capacity, greatly saving space.
