Heavy Duty Air / PU Filter Making Machine Gluing Curing Production Line

PU Filter Making Machine Heavy Duty Air Filter PU Gluing Curing Production Line

1, General Description

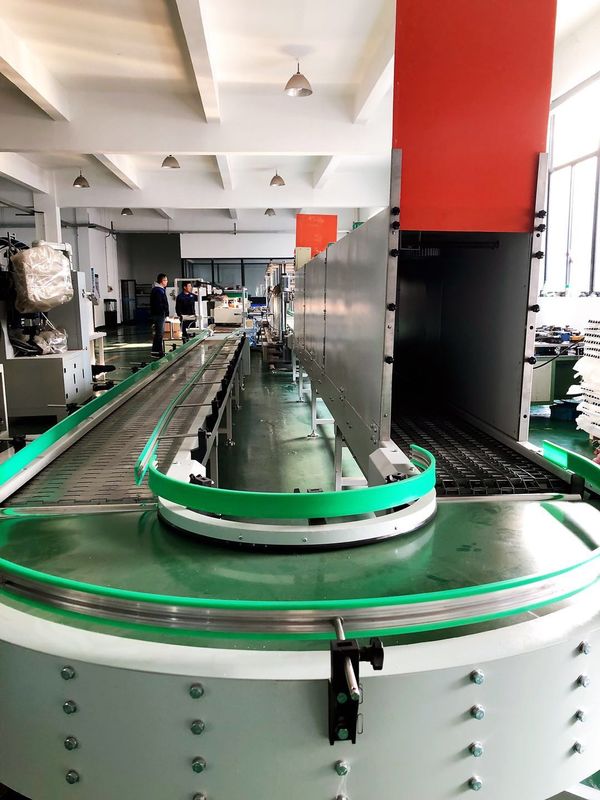

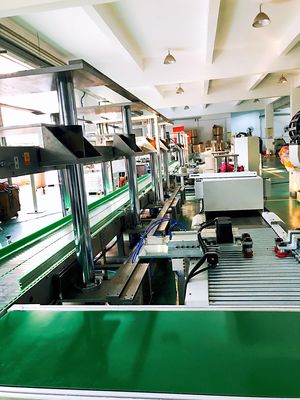

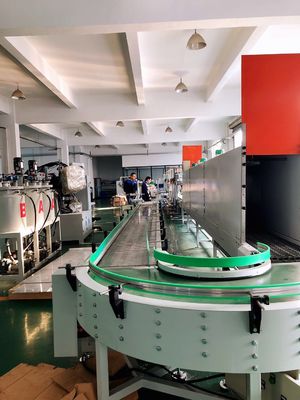

This heavy-duty air filter PU production line consists of PU gluing machine, conveyor belt and curing oven, it is used for heavy-duty air filter PU gluing, drying and forming.

2, Machine Specifications

1, The amount of spit: the theoretical maximum range of 5-30g / S

2, Installation requirements:

          a,Three-phase AC 380V + neutral + ground, frequency 50HZ; b, peak power 12KW;

          c, Gas source: pressure 0.6~0.8Mpa; d, nitrogen: dry compressed nitrogen

3, Raw material requirements: A: B

4. The maximum effective stroke of the workbench: 500mm*700mm;

5, The size of the machine: 2200mm × 1300mm wide × 1800mm high

6, Machine weight:1.2 Ton

3, Machine Features

(1) High degree of automation, system accuracy can be accurate to within 8‰.

(2) The head mechanism has a number of patented technologies, continuously producing 100 non-ironing, ensuring continuous constant temperature operation; the long-term operation of the head mechanism does not wear, reducing the phenomenon of raw material backflow, etc., greatly reducing maintenance and repair time and cost; Modular, simplify maintenance and maintenance operations; anti-dripping device on the mixing head to avoid dripping of raw materials during the production process.

(3) The mixing device uses a unique pressure static balancing device (patented technology) to ensure the stability of the pressure and flow rate of the material during operation. The flow error of the metering state and the production state is avoided, the flow loss caused by the pressure fluctuation of the material is avoided, and the precision and stability of the device are greatly improved;

(4) Mixing evenly, adopting high-shear mixing head, reliable performance, uniform mixing, fine and uniform cells of mixed products, good gloss on the surface of the product, etc.;

(5) The motion control part of the movable truss adopts accessories, equipped with servo drive and servo motor, which makes the whole process of digitization, can easily set the acceleration-deceleration motion operation, reduce the mechanical wear caused by the long-term operation, and avoid the cumulative motion error caused by the low-end configuration;

(6) The quantitative transmission system of raw materials adopts a highly compatible matching scheme to enhance the adaptability of raw materials to large spans, and is convenient to adapt to raw materials of different ratios;

(7) The raw material storage and transmission system is equipped with heating throughout the process to ensure that the working state is completely controllable and constant temperature;

(8) The company's own professional control system team can customize the functions according to customer requirements;

(9) The design of the machine head is compatible with the foaming type and micro-hole foaming technology;
