RILANT, Focus On Auto Industry Solution!
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Rilant |
| Certification: | Iso9001 |
| Model Number: | RZ-ZK250T*P2 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD7000-20000/pc |
| Packaging Details: | wooded box steel box |
| Delivery Time: | 30-45 |
| Supply Ability: | 20 pieces/month |
| Clamping Force(: | 250 Ton | Diameter Of Cylinder: | 400mm |
|---|---|---|---|
| Table Size: | 580x580mm | Stroke: | 280mm |
| Machine Size: | 3600x1400x2800 | Weight: | 12000kg |
| Highlight: | 250 Ton Rubber Vulcanizing Machine,280mm Stroke Rubber Vulcanizing Machine,rubber oil seal ring vulcanizing equipment |
||

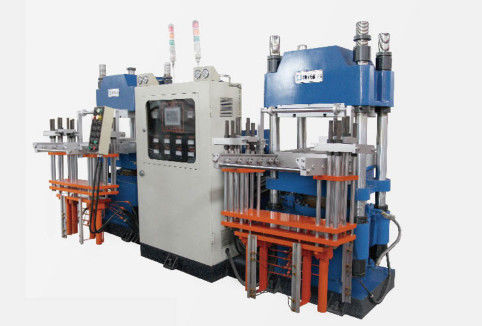

250 Ton Oil Seal Ring Making Machine Vacuum Vulcanizing Machine
Vacuum bell type rubber vulcanizing press is used for vulcanizing various kinds of rubber mould products as well as
non-mould products. And it can make the product as below:
1. The seals kind of products: oil seal, 0 make etc
2. Electronic accessories: button, conductive film, etc
3. The medical equipment: medical stopper, etc
4. Civil rubber products: the water seal
5. Auto parts
Speifications:
| Model | RZ-ZK200T*P2 | RZ-ZK250T*P2 | RZ-ZK300T*P2 | RZ-ZK400T*P1 |
| Clamping force(Ton) | 200T | 250T | 300T | 400T |
| Diameter of cylinder(mm) | 355 | 400 | 430 | 500 |
| Table size(mm) | 520x520 | 580x580 | 650x650 | 750x750 |
| Stroke(mm) | 280mm | 280mm | 420mm | 500mm |
| Motor power(Kw) | 5.5kwX2 | 7.5kwX2 | 11kwX2 | 11kw |
| Horse power(Kw) | 12kwX2 | 13.5kwX2 | 18kwX2 | 25kw |
| System pressure(Kg) | 210kg | 210kg | 210kg | 210kg |
| Machine size | 3500x2300x2500 | 3600x1400x2800 | 3700x2500x2800 | 2700x2500x2600 |
| Weight | 8000kg | 12000kg | 15000kg | 7500kg |
Main features:
1.Vacuum cover will reach the vacuum degree in 650mmHG above within 4 seconds.
2.Most suitable for the products which are difficult to forming or high precision.
3.Adopt double motor and double pump. stability,low noise, low failure rate. Double axle can be operated at the same time. Energy saving.
4.With fast-slow calibration make the mould correction more safe more accurate
Fit different mold structure
5.Use well-know electric hydraulic components.

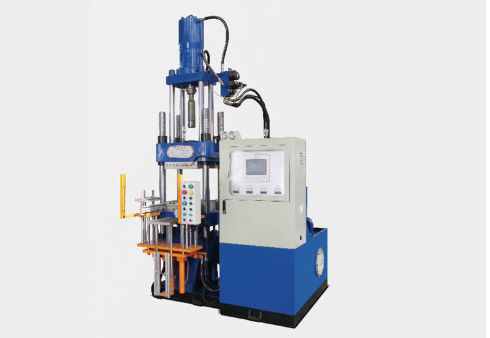

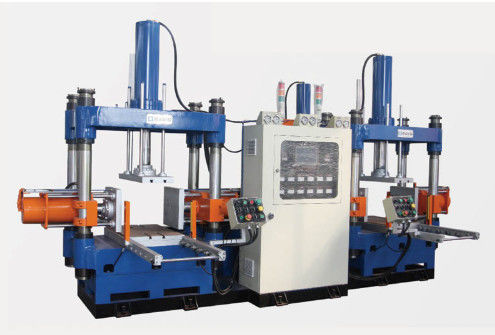

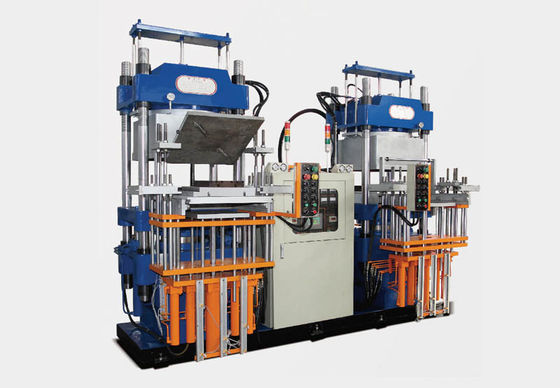

Pictures:
Finished product picture
FAQ
Q: Are you the factory or trading company?
A: We are manufacturer and trading company
Q: What's your payment term?
A: Usually T/T or L/C
Q: What is the warranty of your product?
A: 12 months
Q: What's the delivery time of your machine
A: Usually 45 days
Q: Can we get technician support from your company?
A: We can arrange technician to install machine in your company.
